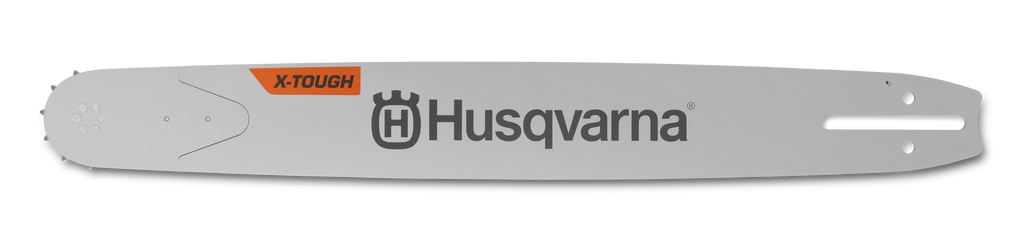

Husqvarna Chainsaw Bar X-TOUGH™ Solid Guide Bar 3/8" .058" RSN | Large Bar Mount (D009)

HusqvarnaSKU: 596 69 11-60

Price:
$190

GST. Included Shipping calculated at checkout

Stock:
Online only
Apple Pay Google Pay Mastercard Shop Pay Visa

Description

The Husqvarna X-TOUGH™ Solid Guide Bar is Husqvarna's toughest professional guide bar, engineered for maximum durability in the most demanding forestry, arborist and tree felling applications. Available in 16-inch, 18-inch, 20-inch, 22-inch, 24-inch, 28-inch and 36-inch lengths, this premium guide bar features a 3/8" pitch, 1.5 mm (.058") gauge (36" model: 1.6 mm / .063" gauge) and Large Bar Mount (D009 / HLM). Manufactured from a single piece of solid steel and equipped with a Replaceable Sprocket Nose (RSN), the X-TOUGH™ is built to withstand heavy professional use while delivering exceptional cutting performance and reliability.

Unlike conventional laminated guide bars, the X-TOUGH™ features a solid steel body with hardened rails for superior resistance to wear, bending and impact. The patented Replaceable Sprocket Nose (RSN) transfers load through a high-quality roller bearing with protective support shields, reducing friction and extending both guide bar and chain life. Optimised oil holes improve lubrication to critical wear points, while the robust triple-rivet nose construction provides outstanding strength. When the sprocket nose eventually wears, it can be replaced without replacing the entire guide bar, reducing downtime and lowering long-term operating costs.

Features

  • Genuine Husqvarna X-TOUGH™ replacement guide bar
  • Available in 16", 18", 20", 22", 24", 28" and 36" lengths
  • 3/8" pitch
  • 1.5 mm (.058") gauge (36" model uses 1.6 mm / .063")
  • Large Bar Mount (D009 / HLM)
  • Solid steel construction for maximum strength and durability
  • Replaceable Sprocket Nose (RSN) extends guide bar service life
  • Hardened rails for superior wear resistance
  • Reinforced roller bearing system reduces friction and wear
  • Optimised oil holes improve chain lubrication
  • Triple-rivet nose construction for exceptional strength
  • Designed for professional forestry, felling, arborist work and heavy-duty timber production

Recomended Chains:

Husqvarna X-CUT™ C85 is the standard full-complement chain and is the best choice for most users. It provides smooth, fast cutting and excellent performance when felling, pruning, firewood cutting and general forestry work.

Husqvarna X-CUT™ C85S is a full-skip chain designed for longer guide bars 20" upwards and larger timber. With fewer cutters, it clears wood chips more efficiently, reduces engine load and helps maintain chain speed during demanding professional cutting applications.

Our Recommendation:

  • 16" & 18" Bars: We recommend the X-CUT™ C85 for the best all-round cutting performance.
  • 20" Bars and Longer: We recommend the X-CUT™ C85S for improved chip clearance and efficiency when cutting larger timber.

Both chains are genuine Husqvarna X-CUT™ chains and are compatible with this guide bar. Choose the option that best suits your style of cutting.

Larger Bars go for the C85S for
