High Output 200W Stator Honda CRF450X / CRF450L / CRF450RL (RMS010-108786)

New
RMSTATORSKU: RMS010108786

Price:
$395.99

GST. Included Shipping calculated at checkout

Stock:
Online only
Apple Pay Google Pay Mastercard Shop Pay Visa

Description

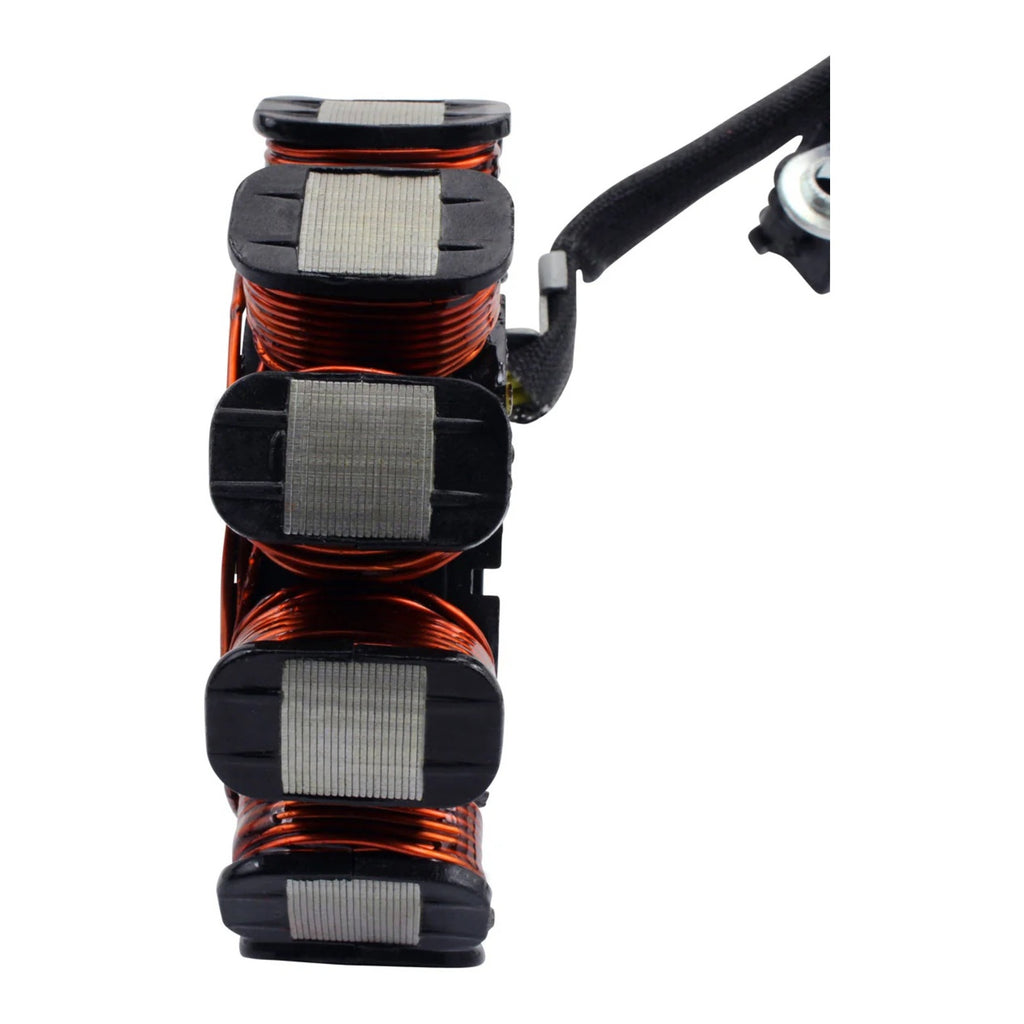

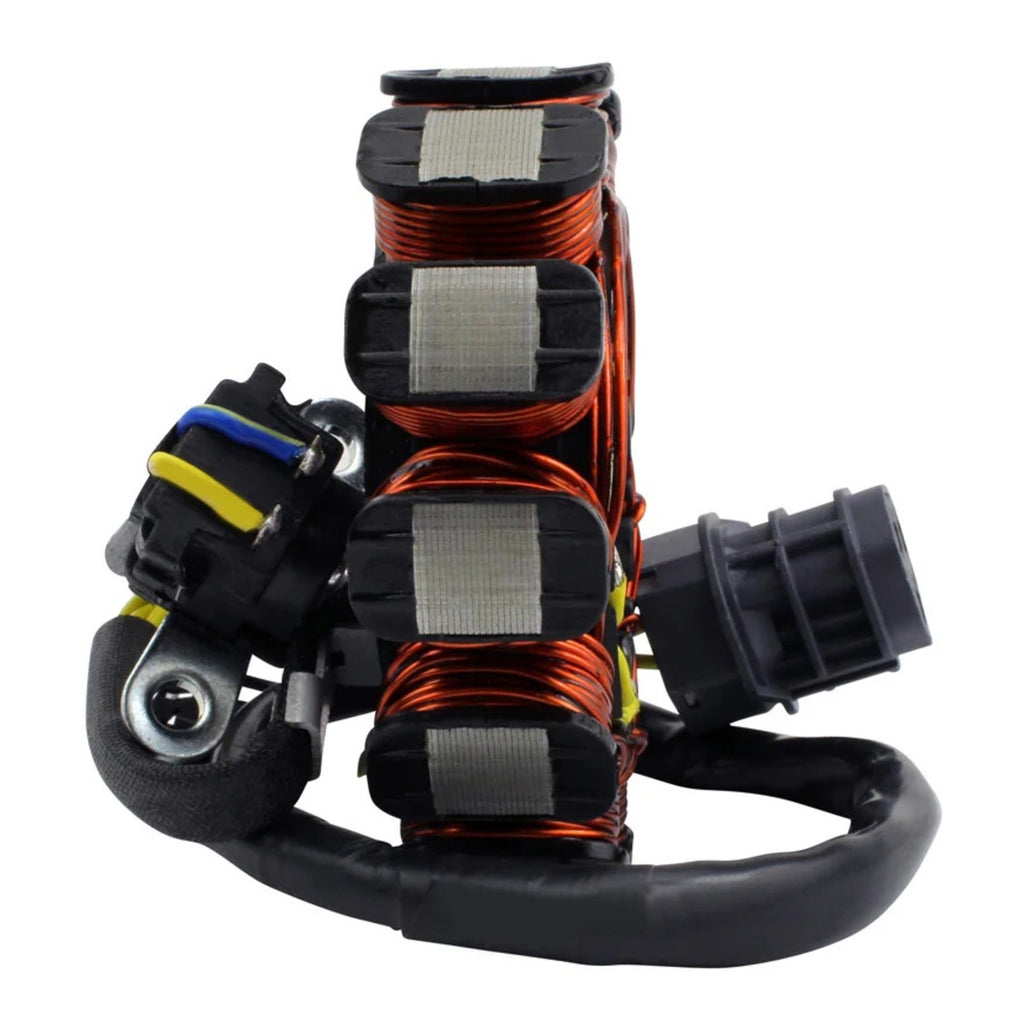

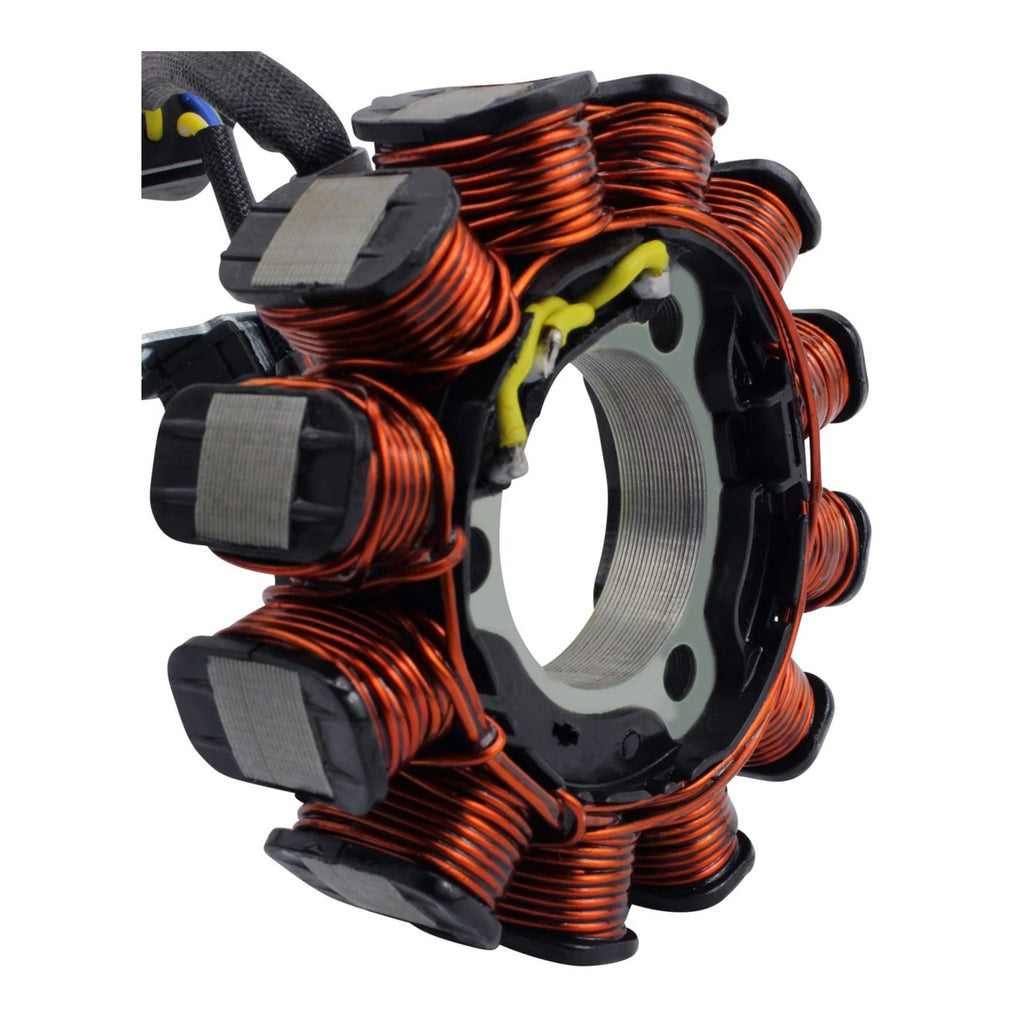

Brand new aftermarket high-output stator (200W).

Features:

  • Direct replacement for your original unit.
  • Plug-and-play, direct fit for easy installation.
  • Highest grade lamination materials.
  • Premium copper windings resistant to 200°C.

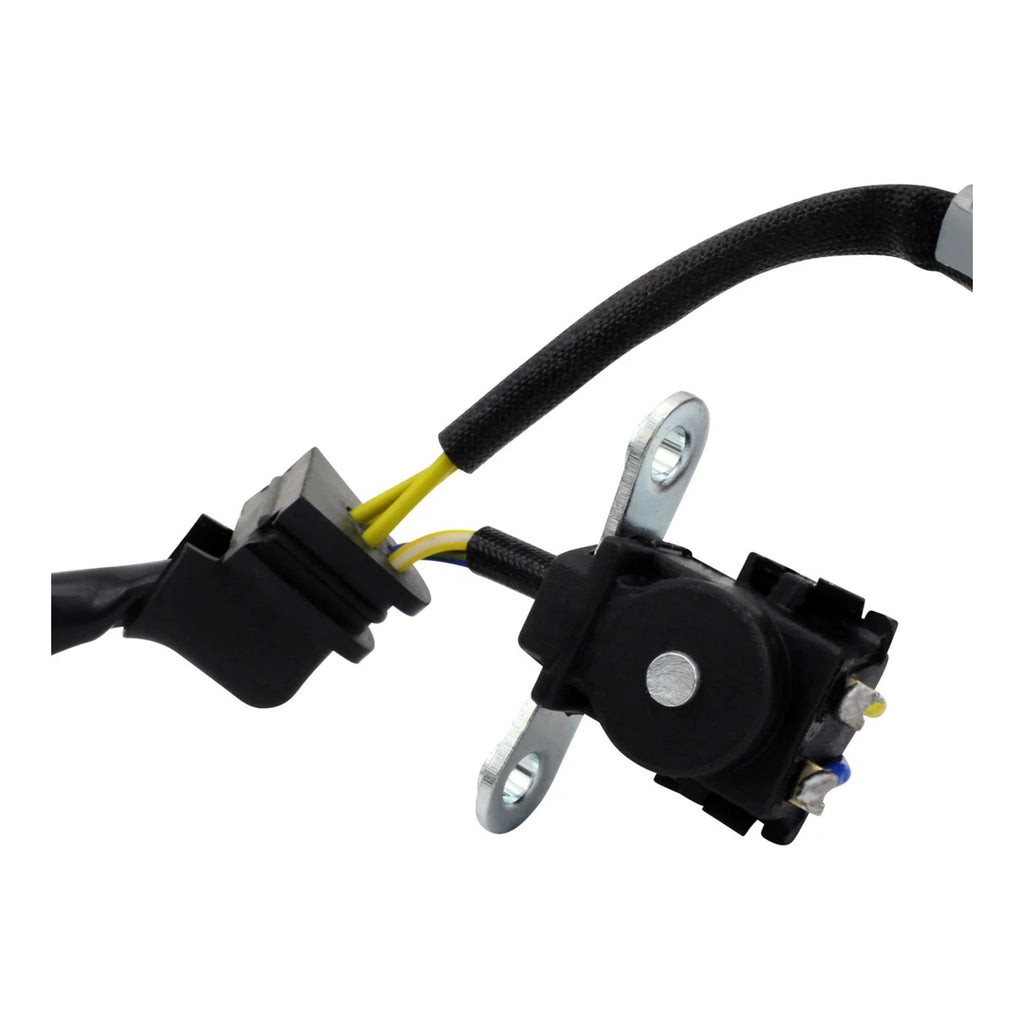

  • Pickup pulsar coil included.

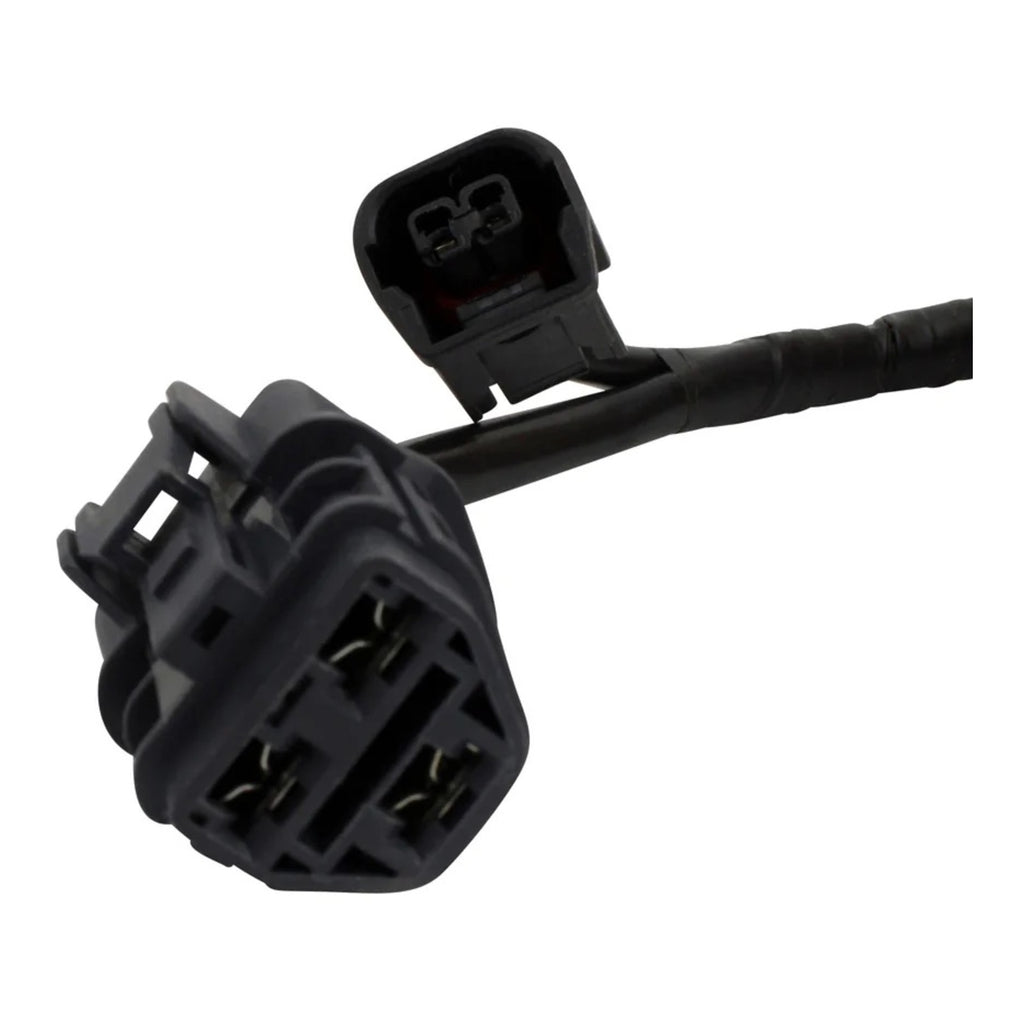

  • Connectors included.

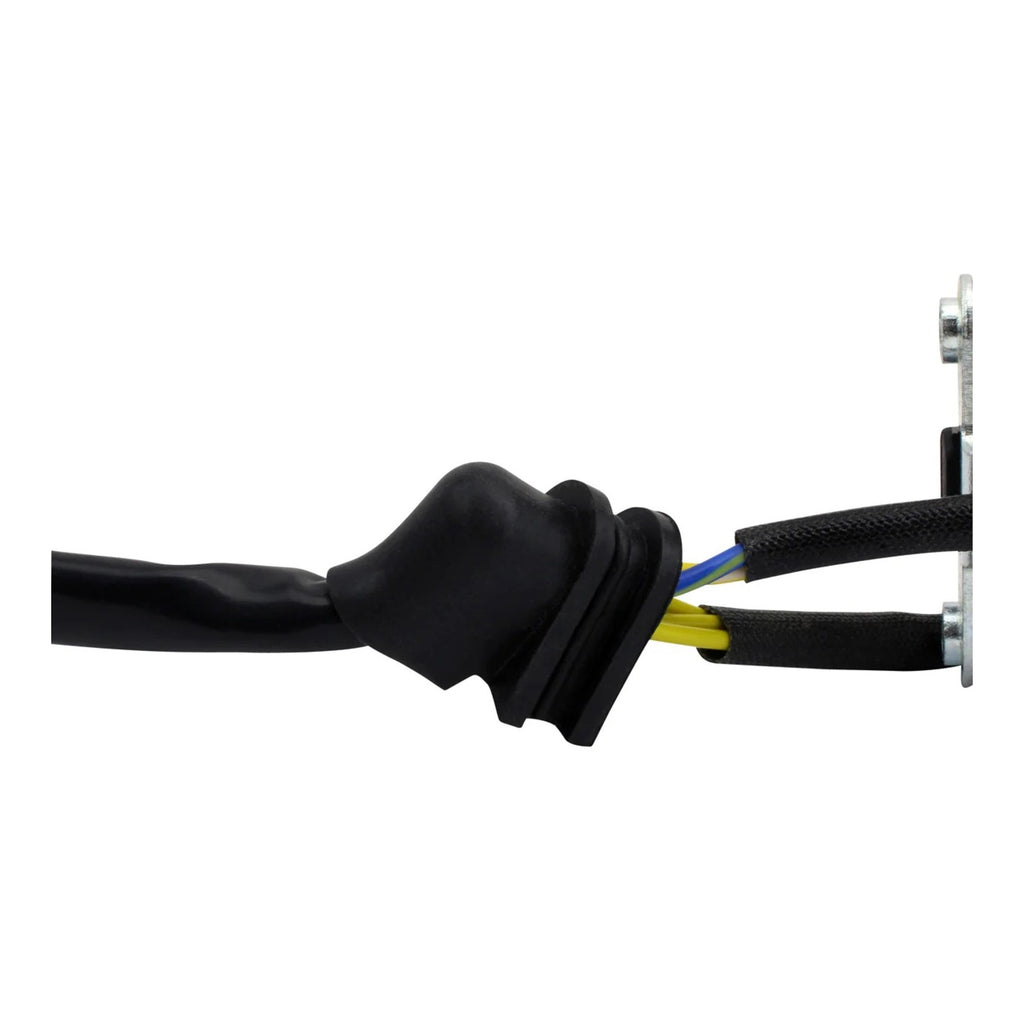

  • Rubber grommet included.
  • All units are tested before shipping.

Specifications:

Dimensio ns

  • Interior diameter: 35 mm
  • Exterior diameter: 89 mm
  • Thickness: 12 mm
  • Stator wires (to grommet): 80 mm
  • Grommet to plug wire lengths: 250 mm and 310 mm
  • Pickup coil wire (to grommet): 45 mm

Other Specifications

  • Number of wires: 5
  • Number of plugs: 2
  • Number of pins: 5
  • Number of poles: 12

Electrical Specifications

  • Alternator resistance (Yellow to Yellow): 1.3 Ω ±20%
  • Alternator resistance (Yellow to ground): O.L (open line)
  • Pickup resistance (Blue/Yellow to White/Yellow): 240 Ω ±20%
