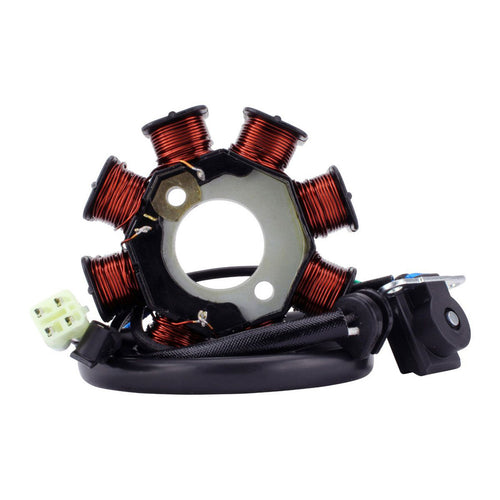

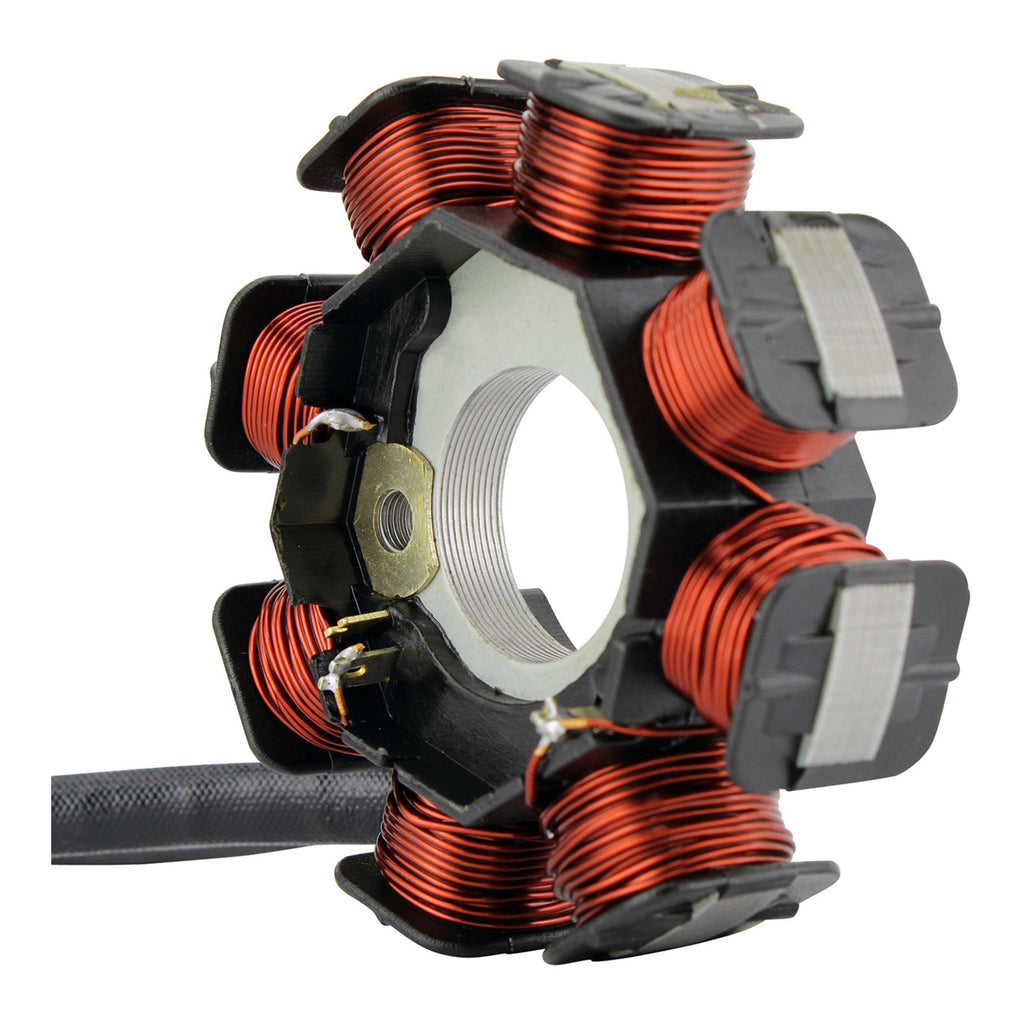

Generator Stator Kawasaki KLX140 '08-'21 (RMS010-107080)

RMSTATORSKU: RMS010107080

Title: GENERATOR STATOR KAW KLX140 08-21 (RMS010-107080)
Price:
$379.99

GST. Included Shipping calculated at checkout

Stock:
In stock online only, ships ships Monday - Tuesday

Description

Brand new aftermarket generator stator

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Pick-up pulsar coil included
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

Dimensions:

  • Interior diameter: 29 mm
  • Exterior diameter: 88 mm
  • Thickness: 10 mm
  • Length of wires stator to grommet: 110 mm
  • Length of wires grommet to plug: 475, 100 mm
  • Length of pickup coil's wire to grommet: 145 mm

Other specifications:

  • Number of wires: 4
  • Number of plugs: 2
  • Number of holes: 2
  • Number of poles: 8

Wire to wire resistance:

  • Alternator: White to Ground = 1.1 ohms +-20%
  • Pickup: Blue/yellow to Ground = 119 ohms +-20%
