Generator Stator – Yamaha WR250F '05–'13

New
RMSTATORSKU: RMS010100184

Price:
$304.99

GST. Included Shipping calculated at checkout

Stock:
Online only
Apple Pay Google Pay Mastercard Shop Pay Visa

Description

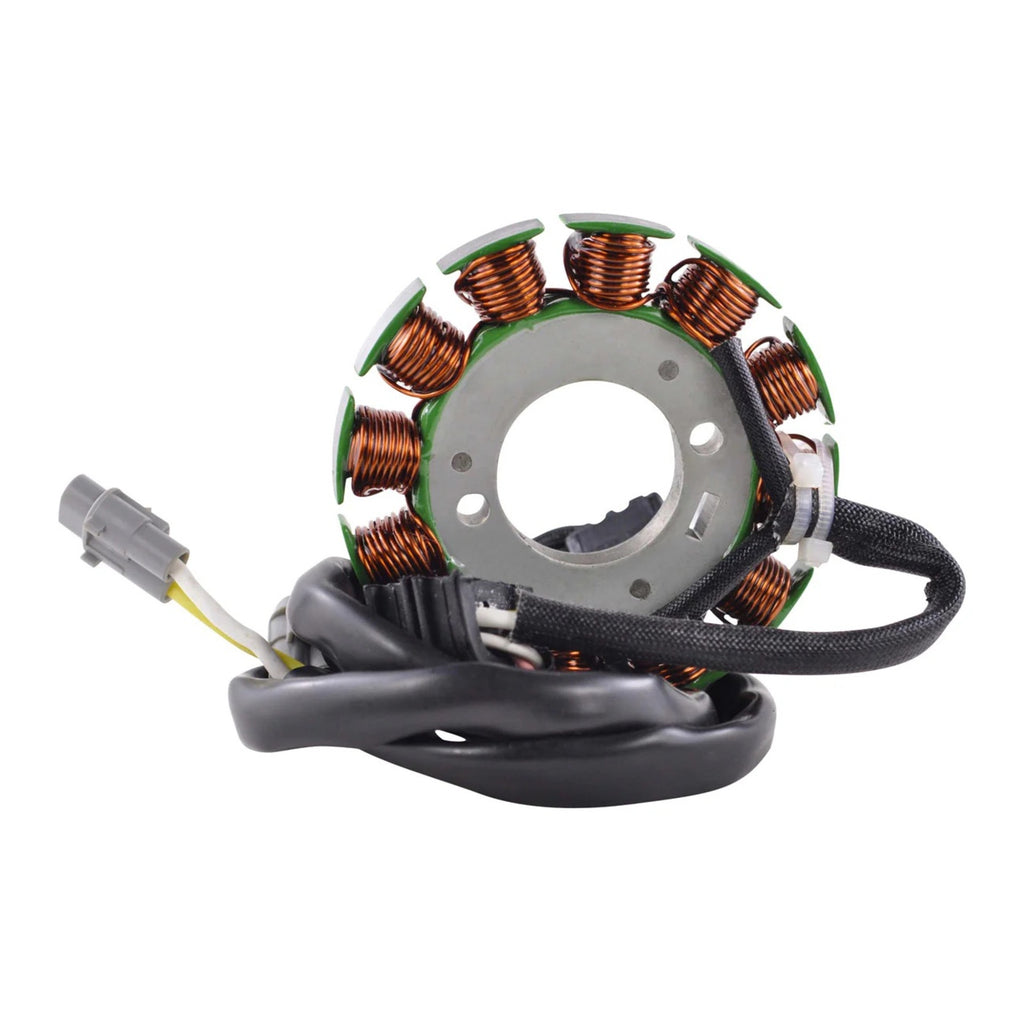

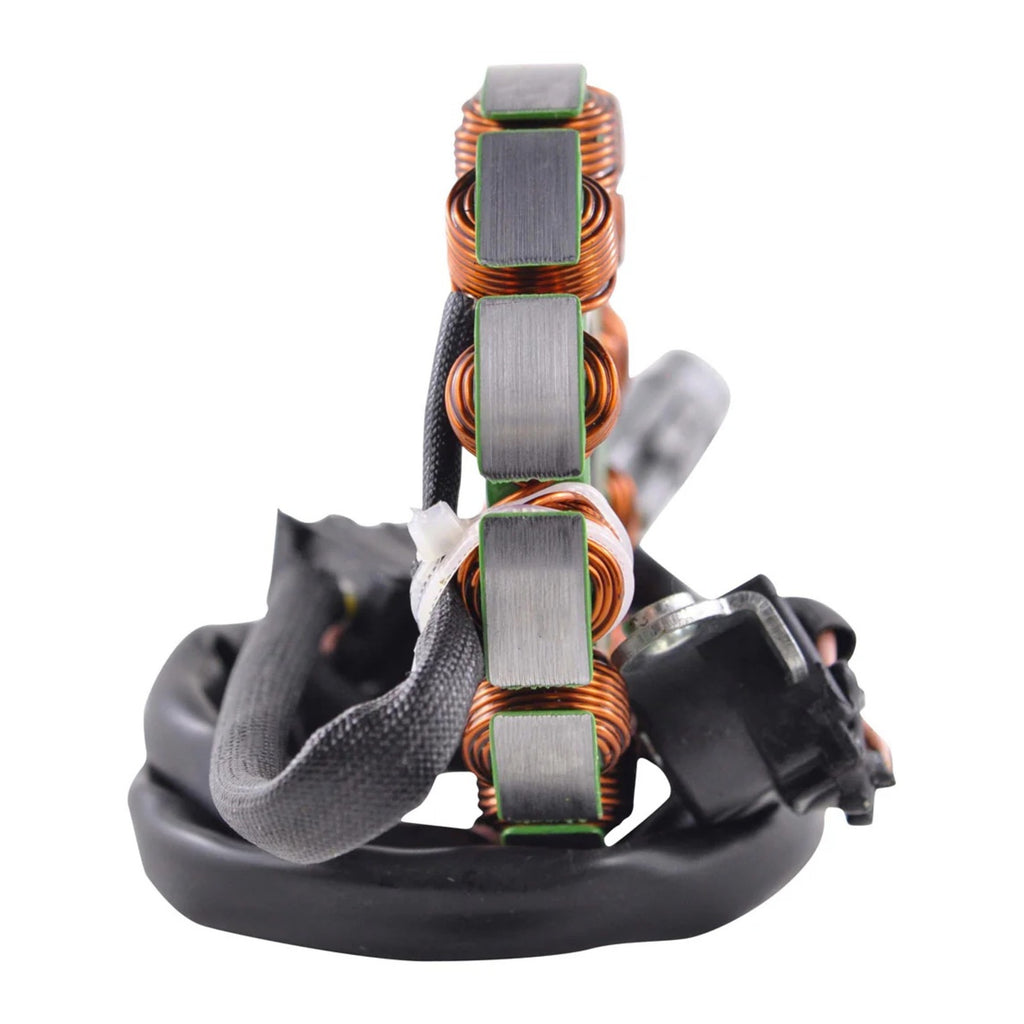

Brand new aftermarket stator. Direct replacement to your original unit.

Features:

  • Plug-and-play, direct fit, easy installation.
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.

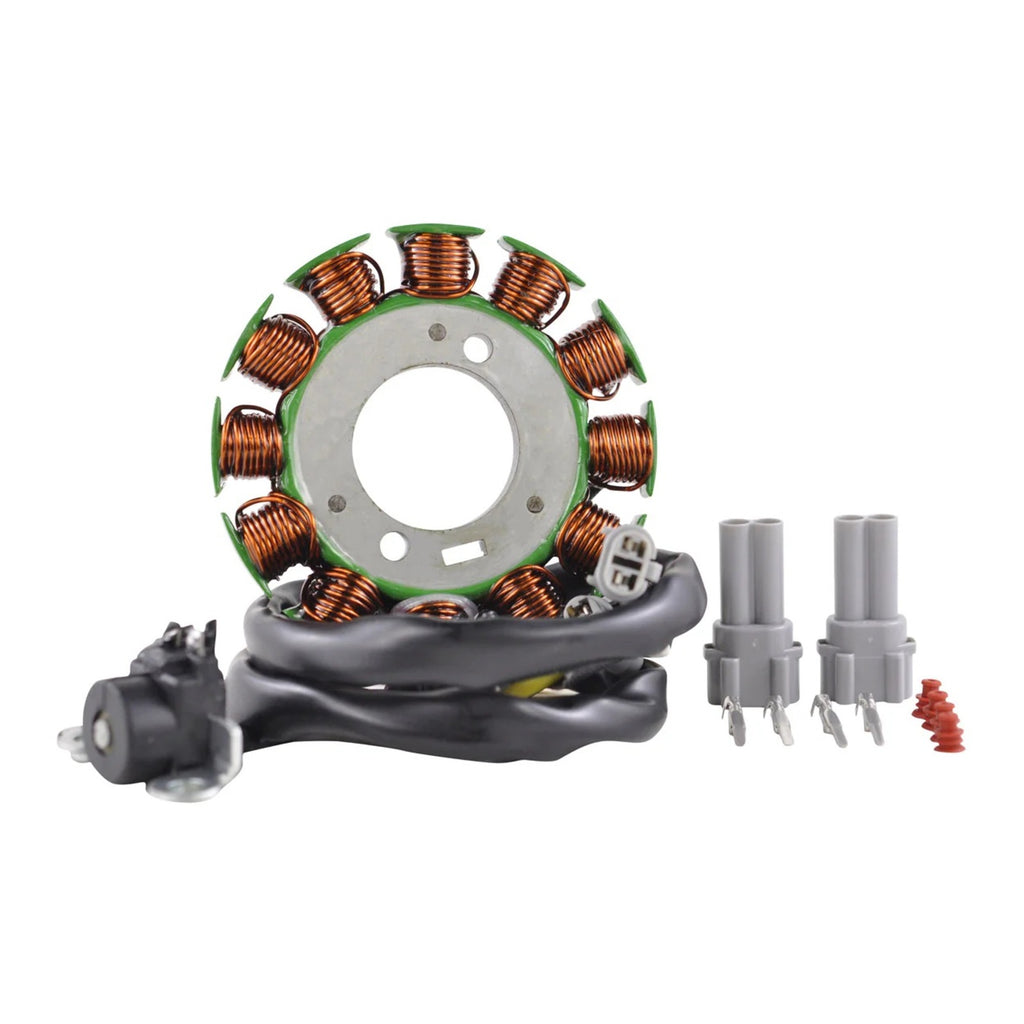

  • Pick up pulsar coil included.

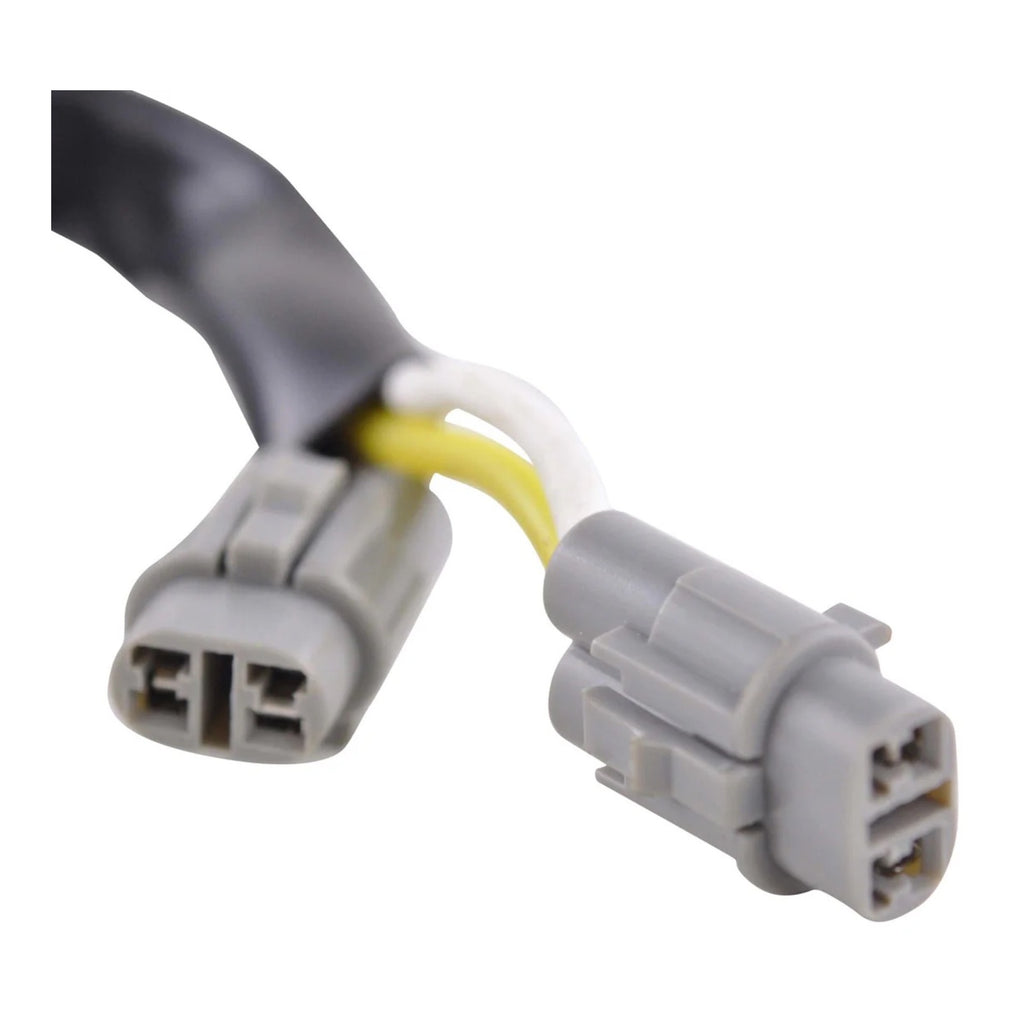

  • Connector included.
  • Rubber grommet included.
  • All products shipped are tested.

Specifications:

Di mensions

  • Interior Diameter: 30mm
  • Exterior Diameter: 84mm
  • Thickness: 9mm
  • Stator to Grommet: 110mm
  • Grommet to Plug: 545mm
  • Pickup Coil to Grommet: 90mm

Other Specifications

  • Number of Wires: 4
  • Number of Plugs: 2

Resistance Values

  • Alternator (Yellow to White): 0.4 Ω ±20%
  • Pickup (Pink to White): 280 Ω ±20%

Warning:

Battery condition is extremely important. No stator can work correctly with a bad or weak battery. Always fully charge your battery before performing any charging system tests or replacing parts. If there is any doubt, have the battery load tested or replaced.
