Description
All-wheel drive Rider with smart collection system and easy emptying

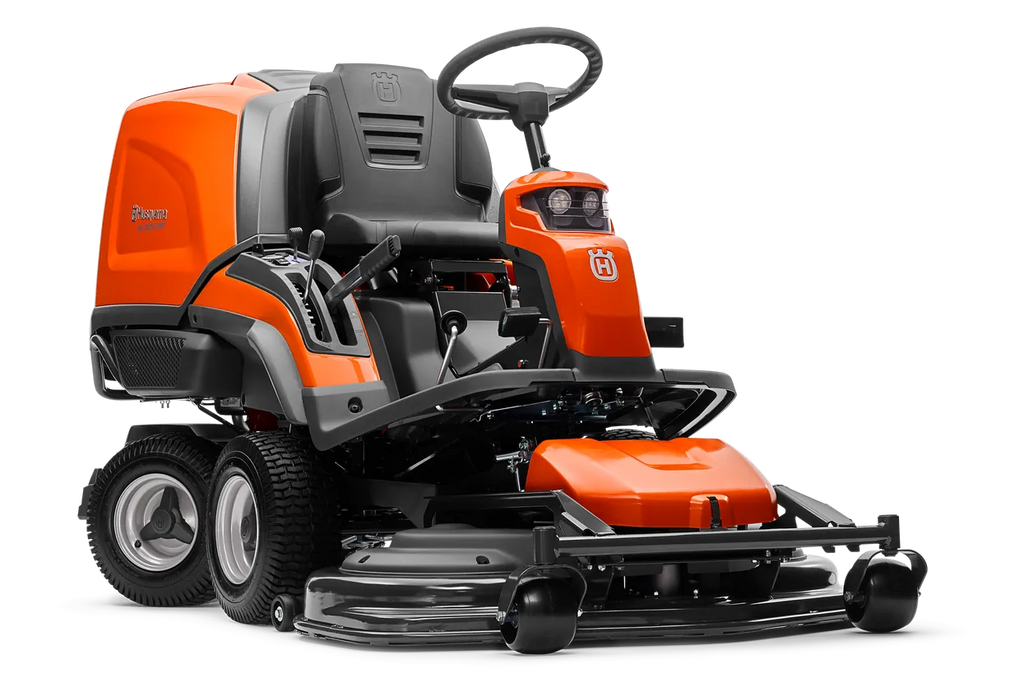

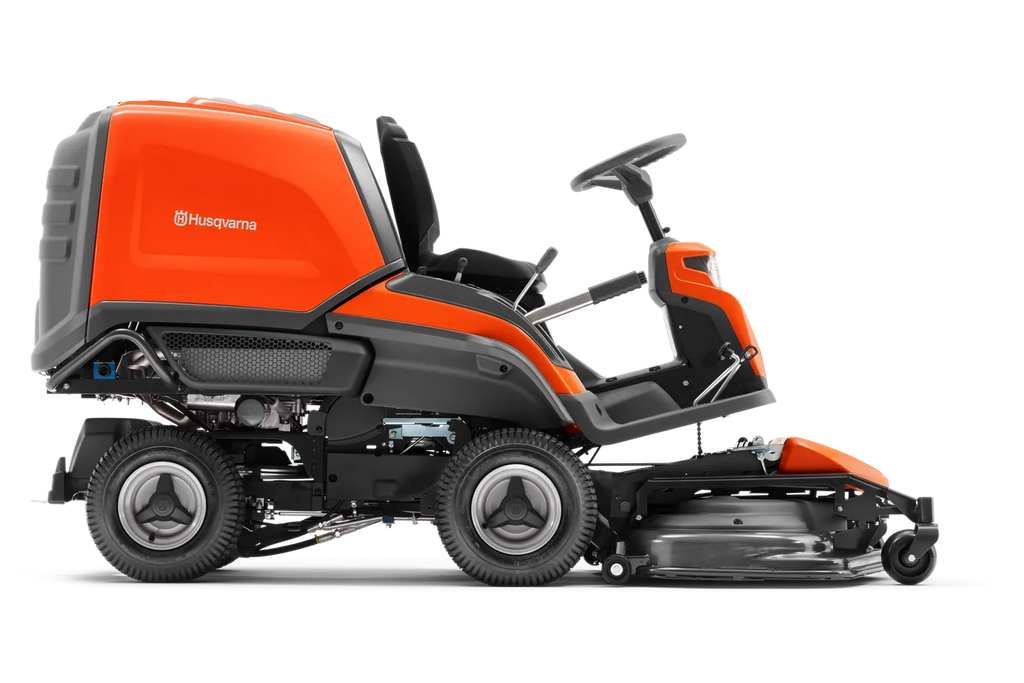

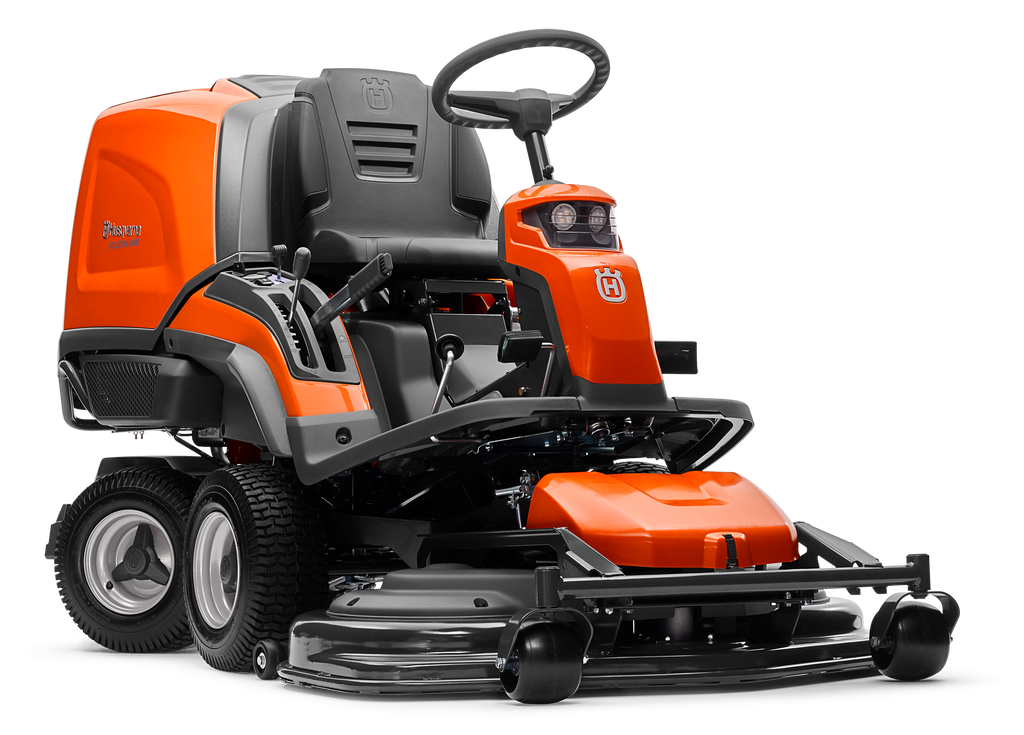

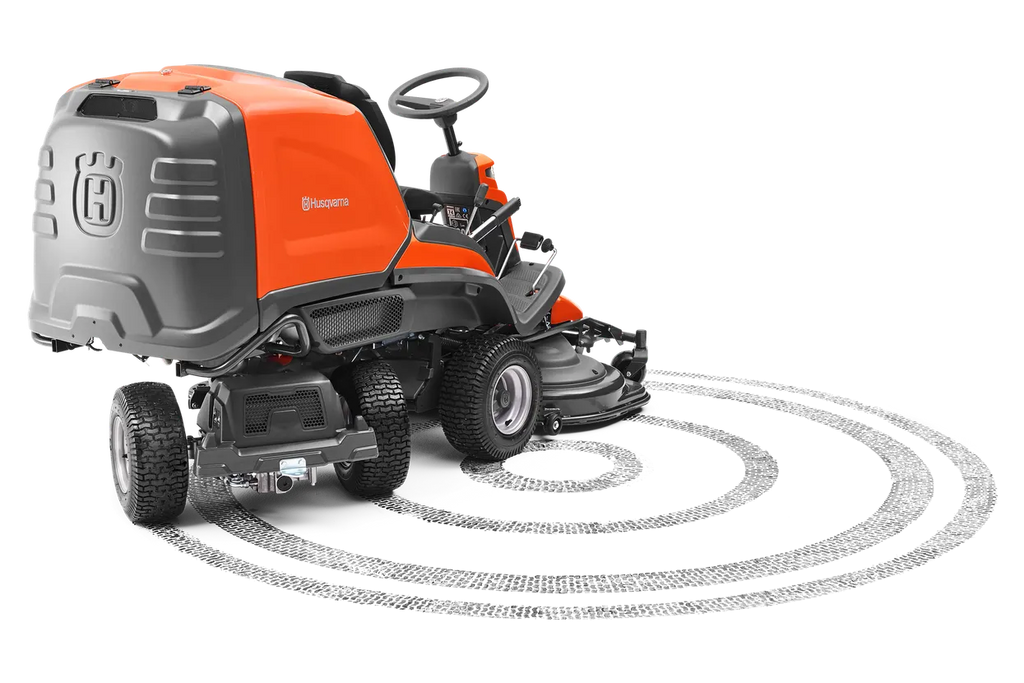

Husqvarna Rider RC 320Ts AWD offers all-wheel drive and high collection capacity to mow large gardens. The ride-on lawn mower has an innovative clog-free collection system that feeds the grass clippings directly from the front-mounted cutting deck into the 300-litre bag. Automatic compaction allows more grass in the collector, so you can drive longer before emptying. Cutting height adjustment and emptying can be performed without getting off the machine, contributing to both comfort and efficient work. All-wheel drive provides the power needed to manoeuvre all types of conditions, and with articulated powered steering, the RC 320Ts can also handle tight turns. The cutting deck can be tilted 90 degrees to be easily accessible for service and cleaning.
Cutting Deck Options:
- 103cm Combi Cutting Deck
- 112 Combi Cutting Deck
Husqvarna RC 320Ts AWD Front Rider Features
All-Wheel Drive (AWD)
Automatic all-wheel drive provides outstanding traction on wet grass, slopes, and uneven terrain, giving you maximum control in challenging mowing conditions.

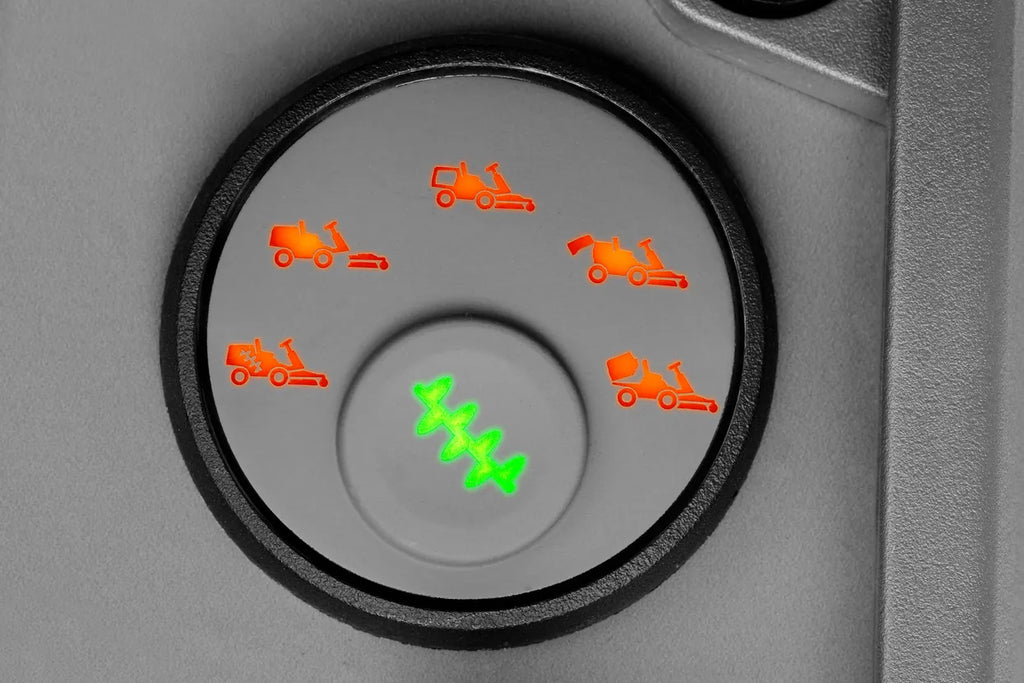

ACTech

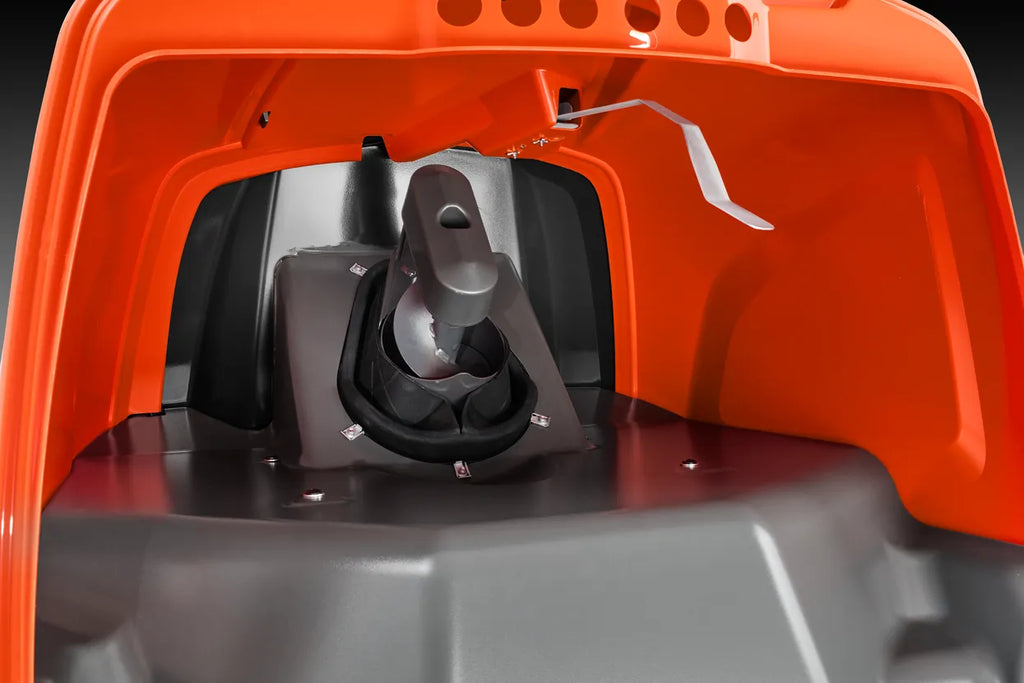

Husqvarna's ACTech collection system efficiently compacts grass clippings into the collector, increasing collection capacity while delivering a clean, professional finish.
Turn Key Start
Simple automotive-style key start provides quick, reliable engine starting every time.

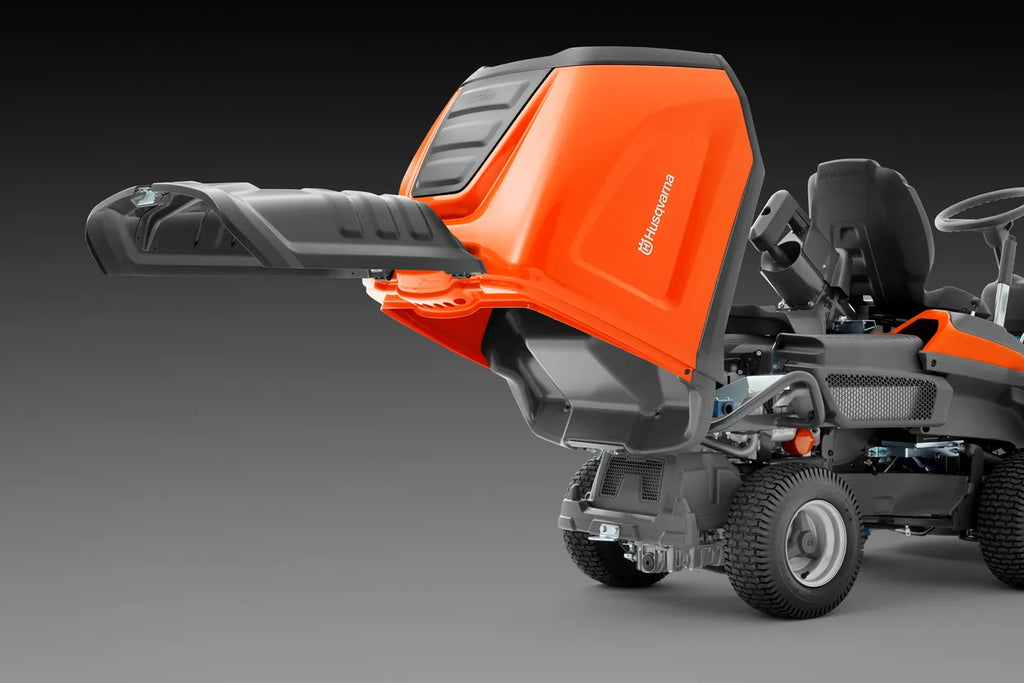

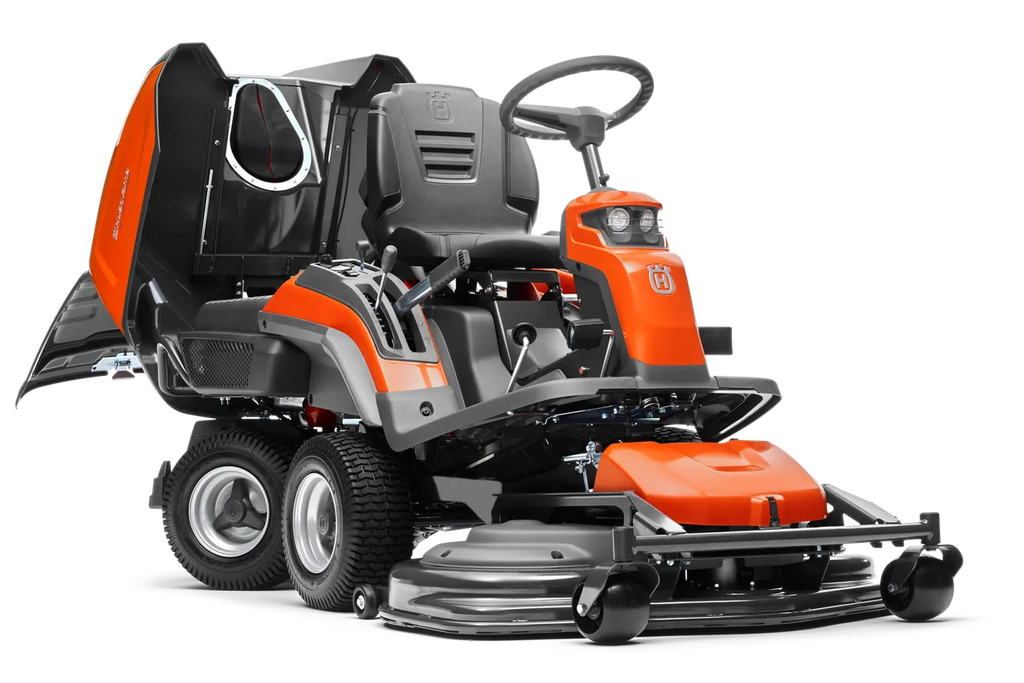

Empty Collector from Seat

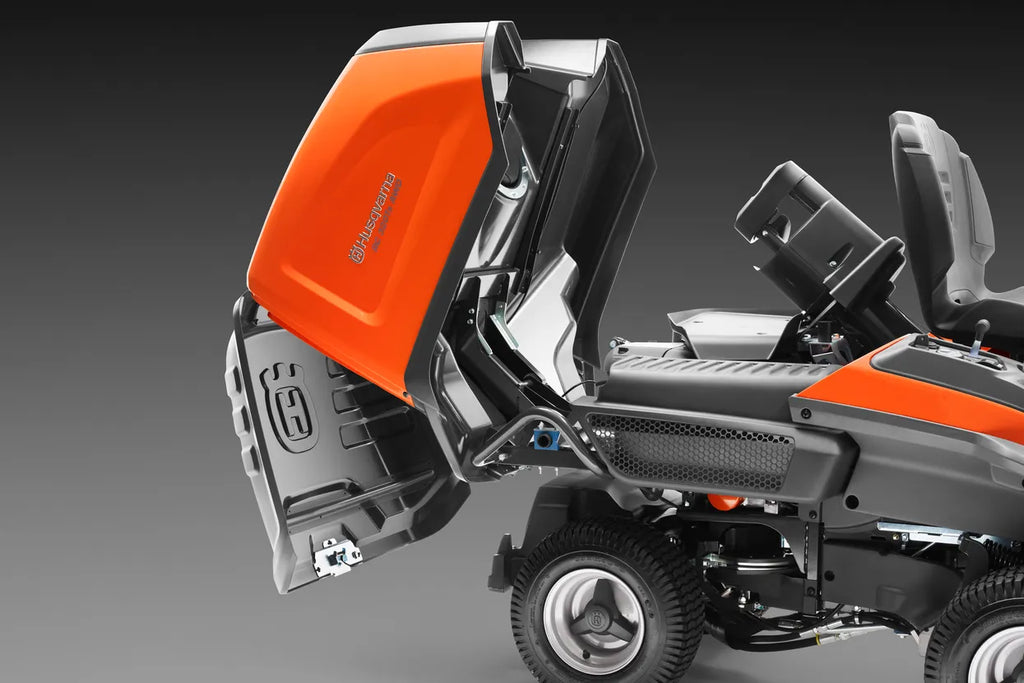

The integrated collector can be emptied directly from the operator's seat using a convenient lever, reducing downtime and improving productivity.
Non-Collecting Mode
Quickly switch from collecting to rear discharge mode when mowing longer grass or larger open areas without needing the grass collector.
Articulated Steering
Husqvarna's articulated steering system delivers an exceptionally tight turning radius, making it easy to manoeuvre around trees, garden beds, and other obstacles.
Power Steering
Power-assisted steering reduces steering effort, making the machine comfortable to operate throughout long mowing sessions.
Pedal-Operated Hydrostatic Transmission
Control both speed and direction with convenient foot pedals, allowing smooth, hands-free operation while keeping both hands on the steering wheel.
Easy-Access Service Points
Routine maintenance is simple thanks to conveniently positioned service points that reduce maintenance time.

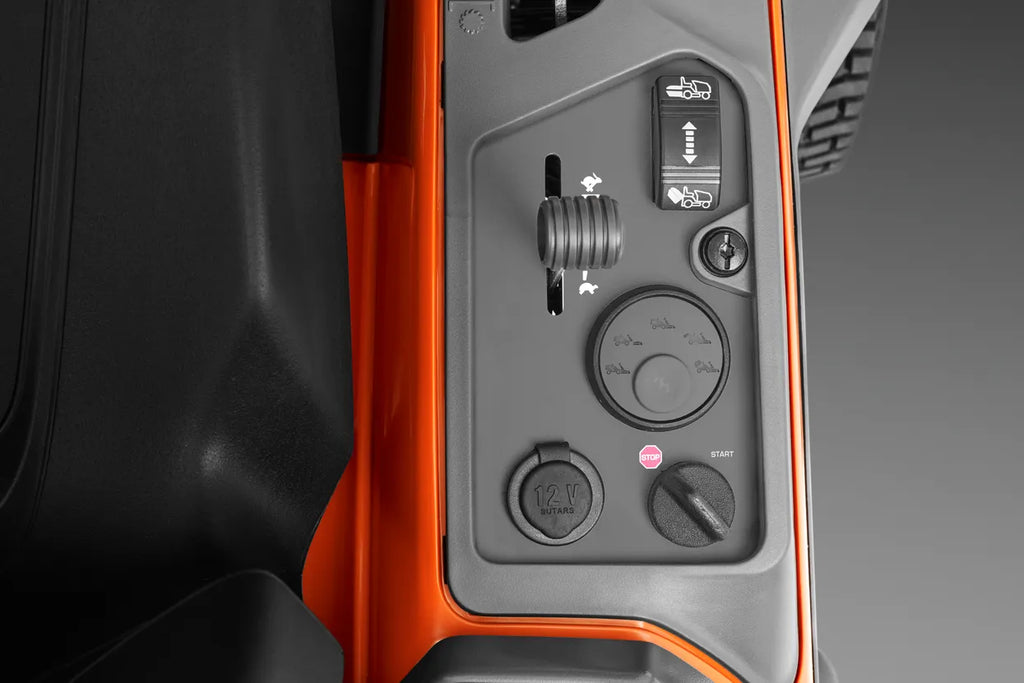

Easy-Access Controls
Ergonomically positioned controls are within easy reach, making operation intuitive and comfortable.
Front-Mounted Cutting Deck
The front-mounted deck provides excellent visibility and access under shrubs, benches, and around obstacles for a superior cutting result.

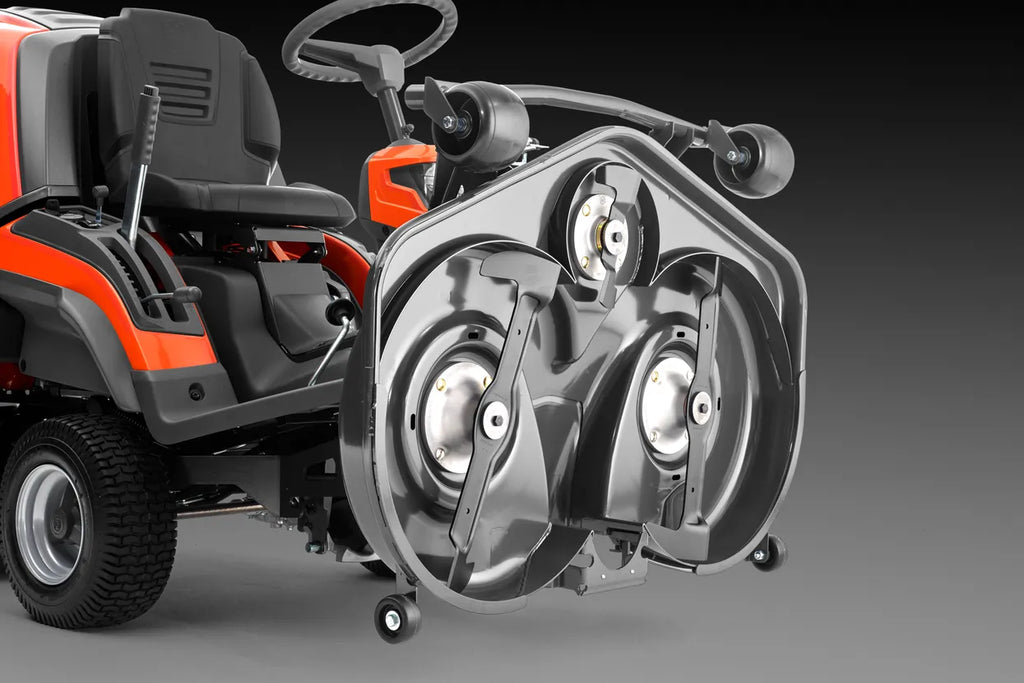

Service Position
The cutting deck tilts into its service position for quick cleaning, blade inspection, and maintenance.
Four Large Wheels
Large wheels provide excellent traction, stability, and a smoother ride over uneven ground while reducing lawn damage.
Automatic Blade Engagement
The cutting blades engage automatically when the cutting deck is lowered, making operation quick and effortless.
Pivoting Rear Axle
The rear axle follows the contours of uneven ground, improving traction, stability, and ride comfort.

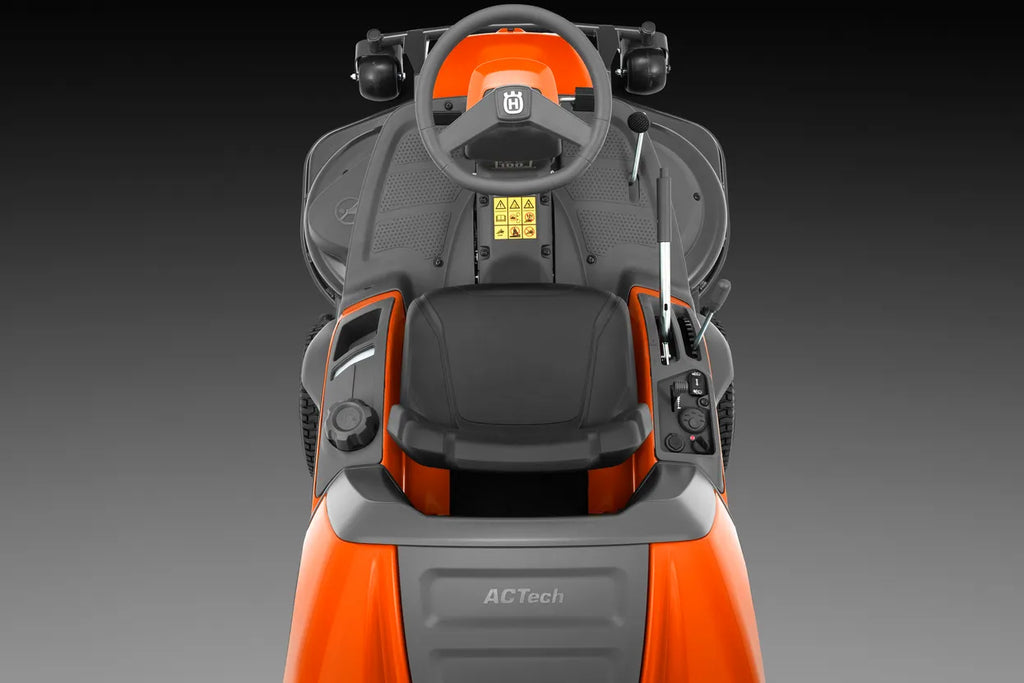

Comfortable Driver's Position
Ergonomic seating, excellent visibility, and easy-to-reach controls help reduce operator fatigue during extended use.

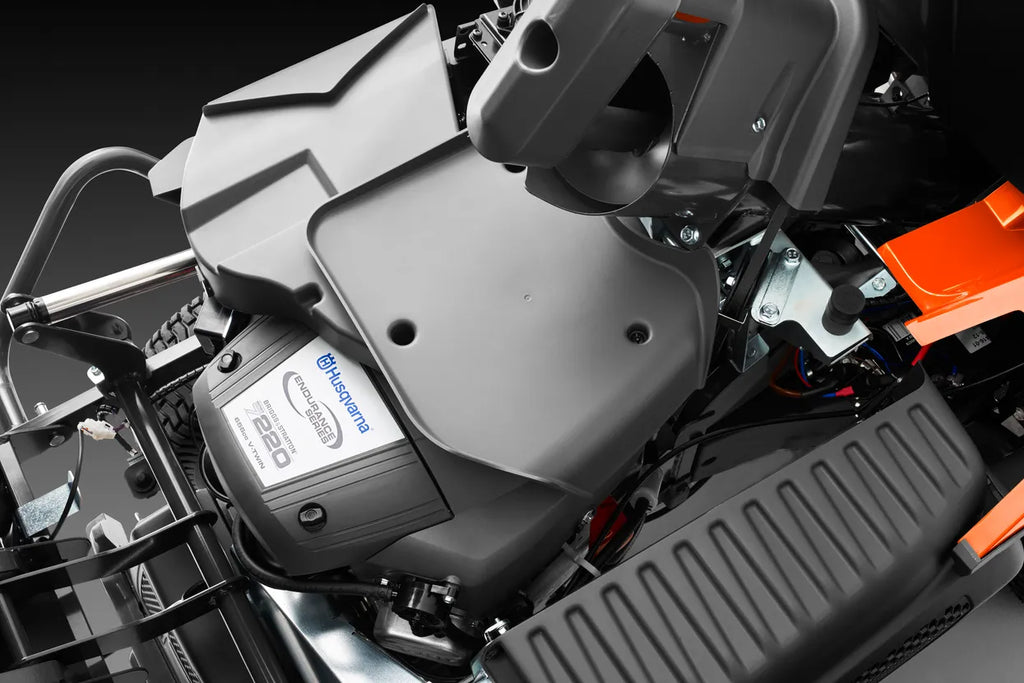

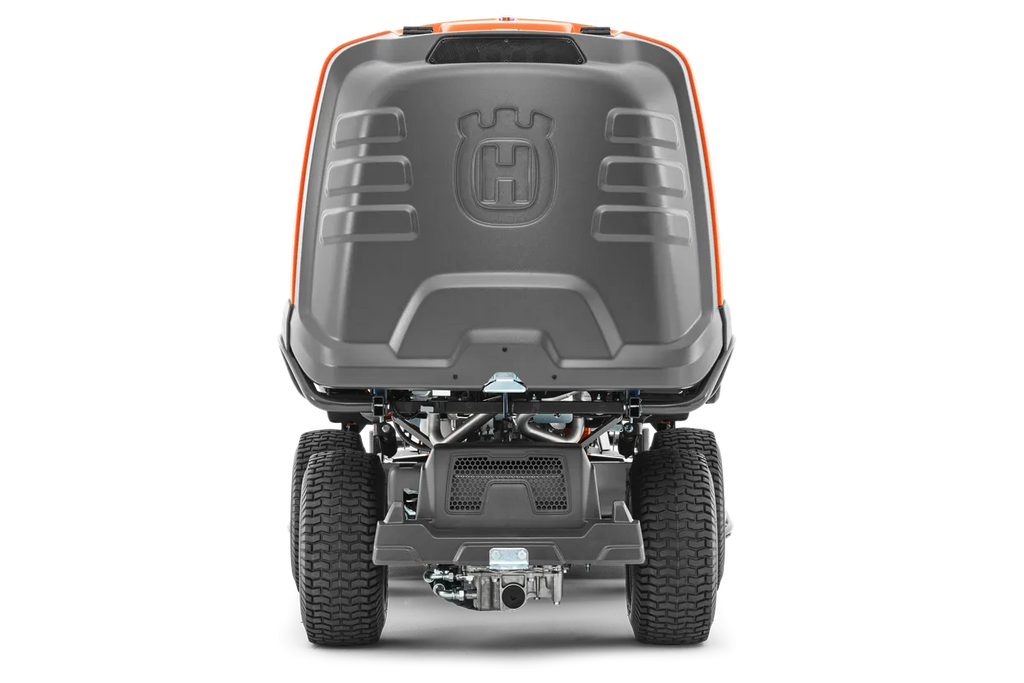

Engine Behind Driver
Rear engine placement improves balance, reduces noise around the operator, and provides a clearer view of the mowing area.

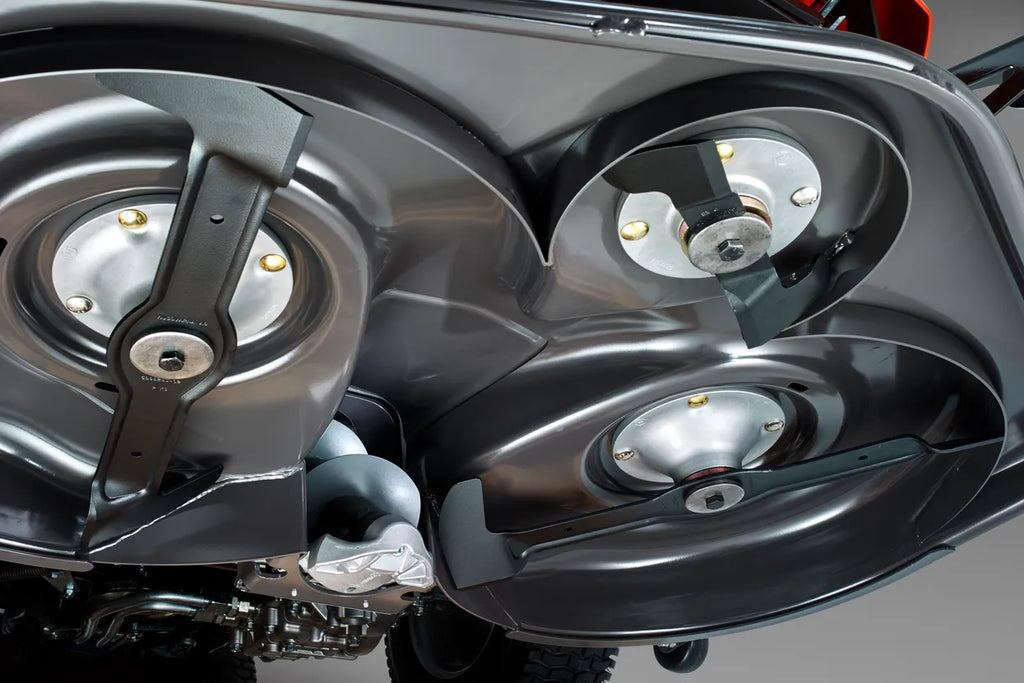

Floating Cutting Deck
The floating cutting deck follows the contours of the ground for an even cut while helping protect both the turf and the deck from scalping.
Hour Meter with Service Minder
Integrated hour meter tracks operating hours and provides service reminders to help keep your mower maintained.
LED Headlights
Bright LED headlights improve visibility when mowing in low-light conditions or transporting the machine.
12V Socket Outlet
Convenient 12V power outlet allows you to power or charge compatible accessories while working.
Easy-Access Cutting Height Lever
Quickly adjust the cutting height from the operator's position to suit different mowing conditions.
External Fuel Cap
Refuel quickly and easily without lifting the bonnet, reducing downtime between mowing sessions.
Pivoting Support Wheels
Pivoting anti-scalp wheels help the cutting deck follow uneven ground while protecting your lawn from scalping.
Transparent Fuel Tank
The translucent fuel tank makes it easy to check fuel levels at a glance without opening the fuel cap.
Attachment Frame
Integrated attachment frame allows you to quickly connect a range of Husqvarna accessories, transforming the RC 320Ts AWD into a true year-round machine.
Specifications:
|
RC 320Ts AWD with 103cm Combi Deck
967 62 88‑11
|
RC 320Ts AWD with 112cm Combi Deck
967 62 88‑14
|
|
|---|---|---|
|
Engine
|
||
Power/fuel type |
Petrol
|
Petrol
|
Net power at preset rpm Energy1 |
12.6 kW
|
12.6 kW
|
Net power at preset rpm |
3,100 rpm
|
3,100 rpm
|
Engine brand |
Briggs & Stratton
|
Briggs & Stratton
|
Motor/engine manufacturer |
Briggs & Stratton
|
Briggs & Stratton
|
Engine name |
Endurance Series
|
Endurance Series
|
Cylinder displacement |
656 cm³
|
656 cm³
|
Cylinders |
2
|
2
|
Engine cooling |
Air
|
Air
|
Engine lubrication type |
Full pressure
|
Full pressure
|
Oil filter |
Yes
|
Yes
|
|
RC 320Ts AWD with 103cm Combi Deck
967 62 88‑11
|
RC 320Ts AWD with 112cm Combi Deck
967 62 88‑14
|
|
|---|---|---|
|
Emission
|
||
Exhaust emissions (CO₂ EU V)2 |
830 g/kWh
|
830 g/kWh
|
|
RC 320Ts AWD with 103cm Combi Deck
967 62 88‑11
|
RC 320Ts AWD with 112cm Combi Deck
967 62 88‑14
|
|
|---|---|---|
|
Battery
|
||
Battery capacity |
5.5 Ah
|
5.5 Ah
|
Battery chemistry |
Li-Ion
|
Li-Ion
|
Battery Weight |
1.1 kg
|
1.1 kg
|
Battery brand |
BMZ
|
BMZ
|
|
RC 320Ts AWD with 103cm Combi Deck
967 62 88‑11
|
RC 320Ts AWD with 112cm Combi Deck
967 62 88‑14
|
|
|---|---|---|
|
Cutting deck
|
||
Uncut circle |
60 cm
|
60 cm
|
Cutting width, min |
103 cm
|
103 cm
|
Cutting width, max |
112 cm
|
112 cm
|
Cutting height min |
25 mm
|
25 mm
|
Cutting height max |
75 mm
|
75 mm
|
Blade engagement |
Automatic
|
Automatic
|
Collector volume |
300 l
|
300 l
|
|
RC 320Ts AWD with 103cm Combi Deck
967 62 88‑11
|
RC 320Ts AWD with 112cm Combi Deck
967 62 88‑14
|
|
|---|---|---|
|
Dimensions
|
||
Tyre dimensions, front |
16x6,5-8
|
16x6,5-8
|
Tyre dimensions, rear |
16x6,5-8
|
16x6,5-8
|
Wheelbase |
90.3 cm
|
90.3 cm
|
Ground clearance |
90 mm
|
90 mm
|
Base machine, length |
208.9 cm
|
208.9 cm
|
Base machine, width |
103 cm
|
103 cm
|
Base machine, height |
128.4 cm
|
128.4 cm
|
Weight (excl. cutting equipment) |
328 kg
|
328 kg
|
|
RC 320Ts AWD with 103cm Combi Deck
967 62 88‑11
|
RC 320Ts AWD with 112cm Combi Deck
967 62 88‑14
|
|
|---|---|---|
|
Drive system
|
||
Transmission type |
Hydrostatic
|
Hydrostatic
|
Transmission manufacturer, rear |
Tuff Torq
|
Tuff Torq
|
Drive method |
Dual pedal-operation
|
Dual pedal-operation
|
Speed forward max |
8 km/h
|
8 km/h
|
Speed reverse max |
7 km/h
|
7 km/h
|
Transmission manufacturer, front |
Tuff Torq
|
Tuff Torq
|
Transmission model, front |
KTM13T
|
KTM13T
|
Transmission model, rear |
K664M
|
K664M
|
|
RC 320Ts AWD with 103cm Combi Deck
967 62 88‑11
|
RC 320Ts AWD with 112cm Combi Deck
967 62 88‑14
|
|
|---|---|---|
|
Equipment
|
||
Seat suspension |
Yes
|
Yes
|
Hour meter type |
Digital
|
Digital
|
Seat material |
PU
|
PU
|
Seat back height |
High
|
High
|
Foldable seat |
Yes
|
Yes
|
Parking brake, type |
Disc
|
Disc
|
|
RC 320Ts AWD with 103cm Combi Deck
967 62 88‑11
|
RC 320Ts AWD with 112cm Combi Deck
967 62 88‑14
|
|
|---|---|---|
|
Vibration
|
||
Vibration level steering wheel |
2.6 m/s²
|
2.6 m/s²
|
Vibration level seat |
0.7 m/s²
|
0.7 m/s²
|
|
RC 320Ts AWD with 103cm Combi Deck
967 62 88‑11
|
RC 320Ts AWD with 112cm Combi Deck
967 62 88‑14
|
|
|---|---|---|
|
Sound and noise
|
||
Sound pressure level at operators ear |
85 dB(A)
|
85 dB(A)
|
Sound power level, guaranteed (LWA) |
100 dB(A)
|
100 dB(A)
|
Sound power level, measured |
99 dB(A)
|
99 dB(A)
|
