Honda WX15 Water Pump + Hose Kit

New
City Honda ManawatuSKU: WX15-KIT

Price:
$1,369.40

GST. Included Shipping calculated at checkout

Stock:
In stock
Apple Pay Google Pay Mastercard Shop Pay Visa

Description

Complete High-Volume Water Pump Kit – Ready to Get the Job Done

The Honda WX15 Water Pump and Hose Kit provides a complete, portable solution for quickly moving clean water around farms, lifestyle blocks, gardens and worksites.

Powered by Honda’s dependable GXH50 commercial-grade four-stroke engine, the WX15 can deliver up to an impressive 280 litres per minute—more than twice the maximum flow of the smaller WX10.

This complete 1.5″ kit includes reinforced suction hose, medium-duty layflat discharge hose, a suction strainer, aluminium camlock fittings and the clamps required to connect everything together.

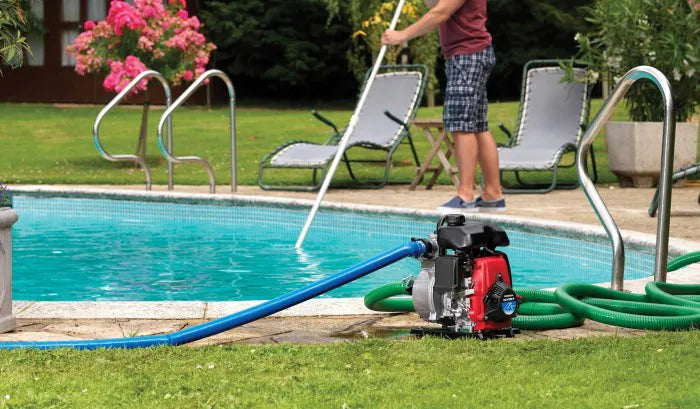

Ideal for irrigation, tank-to-tank water transfer, drainage, emptying pools or ponds and other high-volume clean-water pumping jobs.

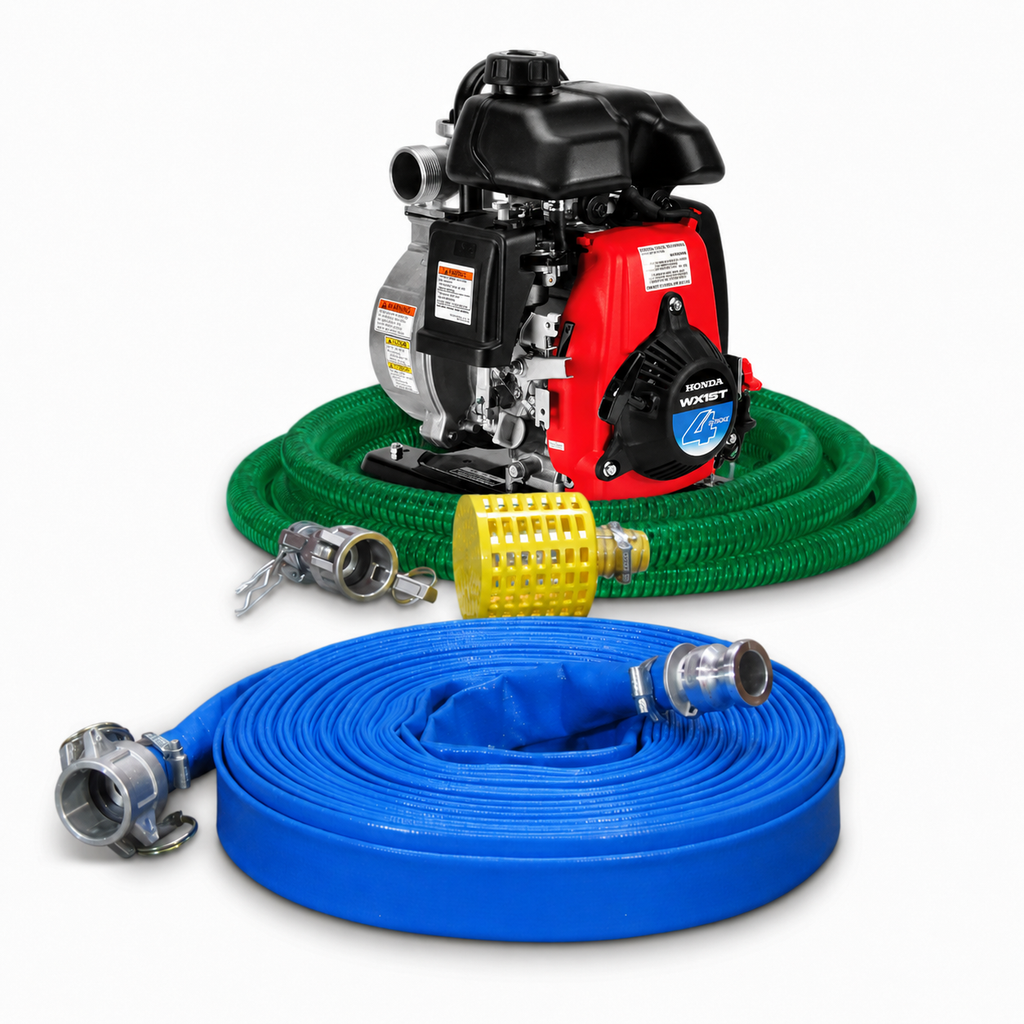

Kit Includes:

  • Honda WX15 1.5″ portable water pump
  • 5 metres of 1.5″ green reinforced suction hose
  • 30 metres of 1.5″ blue medium-duty layflat discharge hose
  • 1.5″ suction strainer to help prevent debris from entering the pump
  • Matching 1.5″ aluminium camlock and hosetail fittings
  • Heavy-duty T-bolt hose clamps for secure connections

Key Features:

  • Complete 1.5″ water-pump and hose setup
  • Pumps up to an impressive 280 litres per minute
  • High-volume performance for faster water transfer
  • Maximum total head of 40 metres
  • Compact and lightweight at approximately 9.1kg
  • Reliable Honda GXH50 commercial-grade four-stroke engine
  • Runs on standard unleaded petrol with no petrol and oil mixing required
  • Reinforced suction hose resists collapsing under vacuum
  • Medium-duty layflat discharge hose offers greater durability while remaining flexible and easy to handle
  • Layflat hose rolls up compactly for transport and storage
  • Aluminium camlock fittings allow hoses to be connected and removed quickly
  • Suitable for irrigation, drainage and general clean-water transfer



Honda WX15 Specifications:

  • Pump type: Self-priming centrifugal volume pump
  • Engine: Honda GXH50 four-stroke OHV
  • Engine displacement: 49.4cc
  • Suction port: 40mm/1.5″
  • Discharge port: 40mm/1.5″
  • Maximum pumping capacity: 280L/min
  • Maximum total head: 40m
  • Maximum suction head: 8m
  • Self-priming time at 5m: Approximately 120 seconds
  • Fuel tank capacity: 0.77L
  • Approximate fuel consumption: 0.91L/hour
  • Dry weight: Approximately 9.1kg
  • Dimensions: 355mm long × 275mm wide × 375mm high

Why Buy Your Honda Pump From City Honda?

When you buy your Honda pump from City Honda Manawatu, you’re getting more than just a pump—you’re getting a complete, ready-to-use setup backed by trusted local support.

  • Every pump is test-run before dispatch to ensure it performs as it should
  • Complete hose kit included, so you have everything needed to get started
  • 4-year Honda domestic warranty and 2-year Honda commercial warranty
  • Nationwide Shipping & support through approved Honda service agents
  • Friendly advice and ongoing support from the City Honda team

Powered by Honda’s dependable GXH50 engine, the WX15 combines high-volume pumping performance with a compact, portable design. With the complete 1.5″ hose and fittings kit included, it’s a reliable and easy-to-use solution that arrives ready to tackle demanding water-transfer jobs.

Important Operating Information

This pump is designed for transferring clean, fresh water only. It is not intended for pumping muddy water, wastewater or liquids containing large amounts of debris.

Always fill the pump chamber with water before starting. Never operate the pump dry, as this can damage the pump seals.

Keep the pump as close to the water source as practical. Minimising the suction height and hose length will improve priming time and overall pumping performance.

The reinforced green hose must be used on the suction side of the pump. The blue layflat hose is designed for discharge only and will collapse if used as a suction hose.

Make sure all fittings and clamps are installed correctly and that every suction-side connection is airtight before operating the pump.
