Honda WX10 Water Pump + Hose Kit

New
Honda Power EquipmentSKU: WX10-KIT

Price:
$1,090

GST. Included Shipping calculated at checkout

Stock:
In stock
Apple Pay Google Pay Mastercard Shop Pay Visa

Description

Complete Water Pump Kit – Ready to Get the Job Done


The Honda WX10 1″ Water Pump and Hose Kit provides a complete, portable solution for moving clean water around farms, lifestyle blocks, gardens and worksites.

Powered by Honda’s reliable GX25 commercial-grade four-stroke engine, the lightweight WX10 can deliver up to 120 litres per minute. This complete kit includes reinforced suction hose, layflat discharge hose, a suction strainer, aluminium camlocks and the clamps required to connect everything together.

Ideal for irrigation, tank-to-tank water transfer, drainage, emptying pools or ponds and general clean-water pumping.

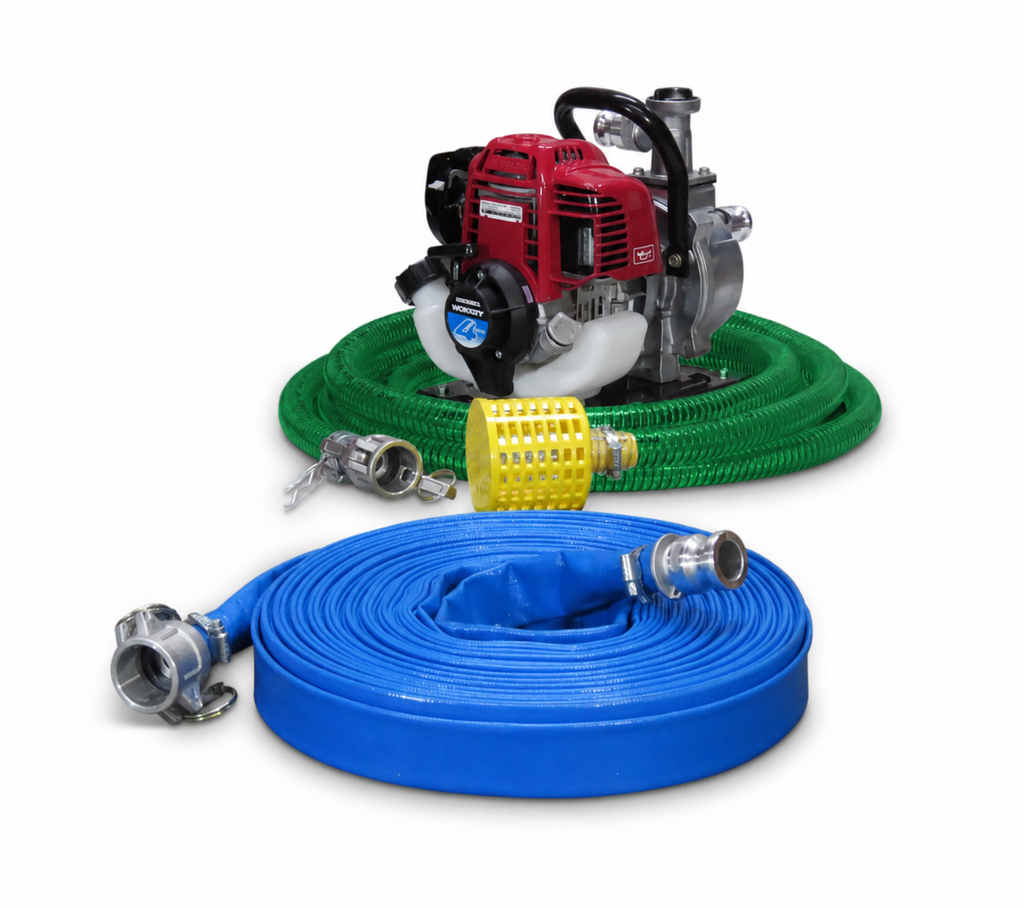

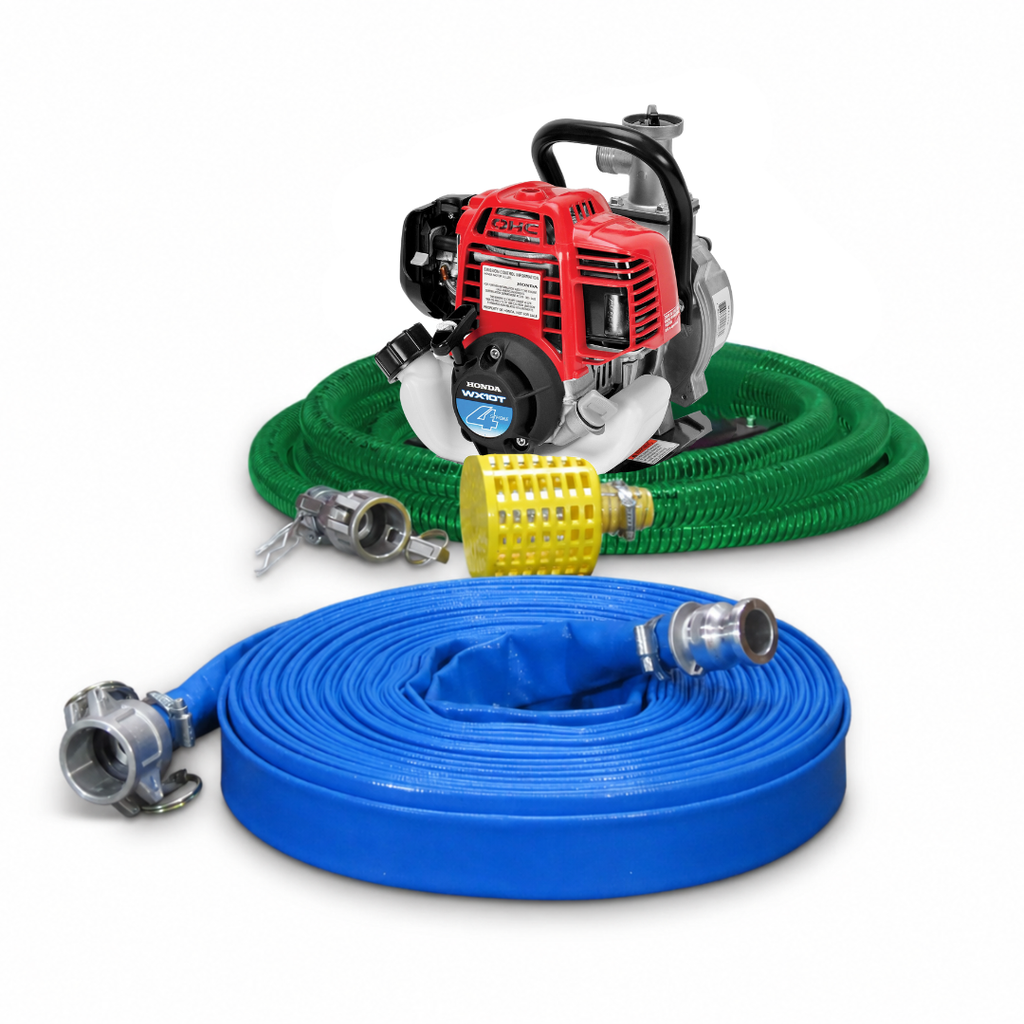

Kit includes:

• Honda WX10 1″ Water Pump
• 5 metres of 25mm/1″ Green Heliflex reinforced suction hose
• 30 metres of 25mm/1″ blue medium-duty layflat discharge hose
• 1″ suction strainer to help prevent debris entering the pump
• Matching 1″ aluminium camlock and hosetail fittings
• T-bolt hose clamps for secure connections

Key features:

• Complete 1″ water-pump and hose setup
• Pumps up to 120 litres per minute
• Compact and lightweight at only 6.1kg
• Reliable Honda GX25 four-stroke engine
• No petrol and oil mixing required
• Reinforced suction hose resists collapsing under vacuum
• Layflat discharge hose rolls up for compact transport and storage
• Camlock fittings allow hoses to be connected and removed quickly
• Suitable for irrigation, drainage and general water transfer

Honda WX10 specifications:

• Pump type: Self-priming centrifugal volume pump
• Engine: Honda GX25 four-stroke
• Suction port: 25mm/1″
• Discharge port: 25mm/1″
• Maximum pumping capacity: 120L/min
• Maximum total head: 36m
• Maximum suction head: 8m
• Self-priming time at 5m: Approximately 80 seconds
• Fuel tank capacity: 0.53L
• Dry weight: 6.1kg

Important operating information:

This pump is designed for transferring clean, fresh water only. Always fill the pump chamber with water before starting and never operate the pump dry. Keep the pump as close to the water source as practical to improve priming time and pumping performance.

The reinforced green hose must be used on the suction side. The blue layflat hose is designed for discharge only and will collapse if used as a suction hose.

Ensure all fittings and clamps are installed correctly and connections are airtight before operating the pump.
