Description
Complete High-Volume 2″ Water Pump Kit – Ready to Get the Job Done
The Honda WB20XT Water Pump and Hose Kit provides a complete, heavy-duty solution for moving large volumes of water around farms, lifestyle blocks, horticultural properties, construction sites and commercial worksites.
Powered by Honda’s dependable GX120 commercial-grade four-stroke engine, the WB20XT can deliver up to an impressive 600 litres per minute—more than twice the maximum flow of the smaller Honda WX15.
This complete 2″ kit includes food-rated reinforced suction hose, medium-duty layflat discharge hose, a suction strainer, aluminium camlock fittings and the heavy-duty clamps required to connect everything together.
Ideal for irrigation, tank-to-tank water transfer, drainage, emptying pools or ponds and other high-volume fresh-water pumping jobs.

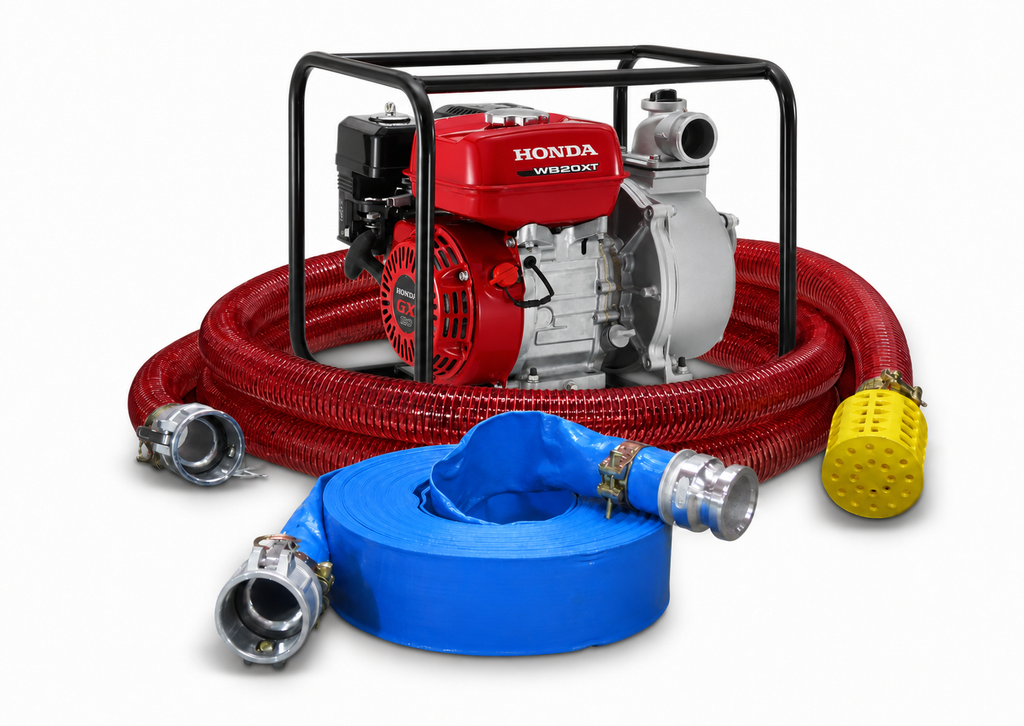

Kit Includes
- Honda WB20XT 2″ water-transfer pump
- 5 metres of 2″ red food-rated reinforced Heliflex suction hose
- 30 metres of 2″ blue medium-duty layflat discharge hose
- 2″ suction strainer to help prevent larger debris from entering the pump
- Matching 2″ aluminium camlock and hosetail fittings
- Heavy-duty T-bolt hose clamps for strong, secure connections
Key Features
- Complete 2″ water-pump and hose setup
- Pumps up to an impressive 600 litres per minute
- More than twice the maximum flow of the Honda WX15
- High-volume performance for faster water transfer
- Maximum total head of 32 metres
- Maximum suction head of 8 metres
- Reliable Honda GX120 commercial-grade four-stroke engine
- Heavy-duty protective full frame
- Rubber engine mounts provide stability and help reduce vibration
- Cast-iron volute helps reduce pump-case wear
- Oil Alert system helps protect the engine from low-oil damage
- Runs on standard unleaded petrol with no petrol and oil mixing required
- Reinforced suction hose maintains its shape under vacuum and resists collapsing
- Smooth internal suction-hose wall helps prevent sediment buildup
- Food-rated red Heliflex suction hose suitable for water-transfer applications
- Medium-duty layflat discharge hose with thicker walls than light-duty alternatives
- 2″ layflat hose rated to 4.5 bar/approximately 65 PSI working pressure
- UV-resistant textile-reinforced PVC layflat construction
- Layflat hose remains flexible and rolls up compactly for transport and storage
- Aluminium camlock fittings allow the hoses to be connected and removed quickly
- Heavy-duty T-bolt clamps provide secure hose and fitting connections
- Suitable for irrigation, drainage and high-volume water transfer
Honda WB20XT Specifications
- Pump type: Self-priming centrifugal volume pump
- Engine: Honda GX120 four-stroke OHV
- Engine displacement: 118cc
- Suction port: 50mm/2″
- Discharge port: 50mm/2″
- Maximum pumping capacity: 600L/min
- Maximum total head: 32m
- Maximum suction head: 8m
- Self-priming time at 5m: Approximately 110 seconds
- Fuel tank capacity: 2.5L
- Approximate fuel consumption: 1L/hour
- Oil Alert: Yes
- Mounting: Rubber
- Dry weight: Approximately 21kg
- Dimensions: 455mm long × 365mm wide × 420mm high
Why Buy Your Honda Pump From City Honda?
When you buy your Honda pump from City Honda Manawatu, you’re getting more than just a pump—you’re getting a complete, ready-to-connect setup backed by trusted local support.
- Every pump is checked and test-run before dispatch
- Complete 2″ hose and fitting kit included, so you have everything needed to get started
- 4-year Honda domestic warranty and 2-year Honda commercial warranty*
- Nationwide shipping and support through Honda’s authorised service network
- Local servicing and parts support from City Honda Manawatu
- Friendly advice and ongoing support from the City Honda team
Powered by Honda’s dependable GX120 engine, the WB20XT combines outstanding high-volume pumping performance with strong, full-frame construction. With the complete 2″ suction hose, discharge hose and fittings kit included, it provides a reliable, easy-to-use solution that arrives ready to tackle demanding water-transfer jobs.
Important Operating Information
The Honda WB20XT is designed for fresh-water and general water-transfer applications. It is not a dedicated trash pump and should not be used for pumping thick mud, sludge, wastewater or liquids containing large solids.
Always fill the pump chamber with water before starting. Never operate the pump dry, as this can damage the mechanical pump seals.
Keep the pump as close to the water source as practical. Minimising the suction height and suction-hose length will improve priming time and overall pumping performance.
The reinforced red Heliflex hose must be used on the suction side of the pump. The blue layflat hose is designed for discharge only and will collapse if used as a suction hose.
Make sure all fittings and clamps are installed correctly and that every suction-side connection is completely airtight before operating the pump. Even a small air leak can prevent the pump from priming correctly.
The suction strainer must remain fitted whenever the pump is operating. Ensure it is fully submerged and kept clear of mud, vegetation and other obstructions.
