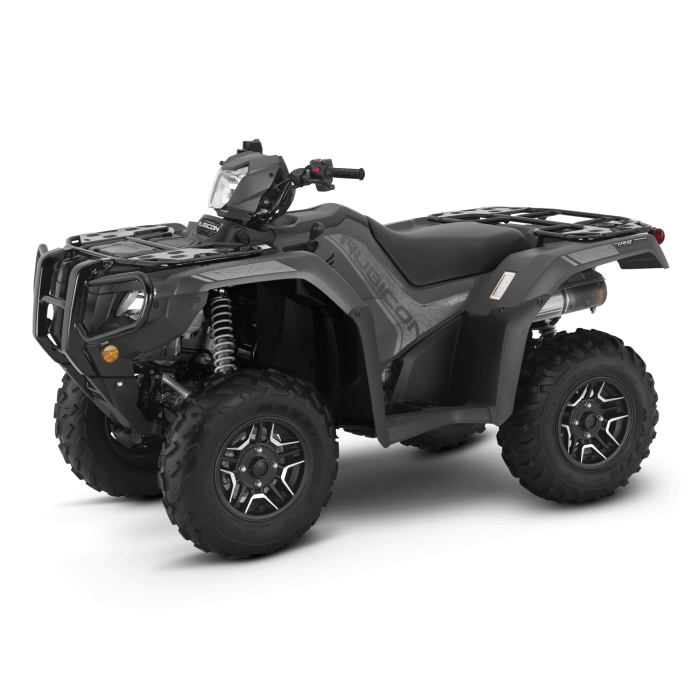

Honda TRX520FA7 Special Edition

HondaSKU: TRX520FA7

Price:
$25,294

GST. Included Shipping calculated at checkout

Apple Pay Google Pay Mastercard Shop Pay Visa

Description

About the TRX520FA7 Special Edition!

The TRX520FA7 is ready to work hard and play hard. With aluminum wheels, colour-matched suspension, and painted bodywork. Plus TRX520 features like independent rear suspension (IRS) for a smooth ride over rough terrain. And the reliable, proven 518cc Honda engine that punches way above its class when it comes to efficiency and power. Top it all with an automatic dual-clutch transmission (DCT) featuring both automatic and manual modes, a hi-low range sub transmission, and a reverse switch to simplify the transition into and out of reverse.

In the looks department, the FA6 sports a redesigned grille and front bumper for a more aggressive, stylised look, and it also comes with a handy new utility box and new carry rack design. New guards extend the full length of the lower suspension arms for full coverage of the driveshaft and outboard CV joints for even more underbody protection. With a front diff lock and massive 600kg towing capacity, this bike is made to tackle the big jobs.

Features

  • Colour: Matte Gray Metallic
  • ATV Electronic Power Steering
  • Automatic Dual Clutch Transmission (DCT)
  • Independent Rear Suspension
  • Large Towing Capacity

Engine

Engine Type Longitudinally mounted liquid-cooled OHV single-cylinder four-stroke
Engine Displacement 518 cc
Bore and Stroke 96.0mm x 71.5mm
Compression Ratio 9.5:1
Ignition Full-transistorised with electronic advance
Fuel System Programmed fuel injection (PGM-FI) - 36mm throttle body
Cylinders 1



Transmission

Starter Electric with auxiliary recoil
Gearbox Direct front and rear driveshafts with TraxLok® and locking front differential
Final Drive Dual Clutch Automatic; 5-speed with reverse and High/Low



Wheels, Suspension & Brakes

Suspension Front Independent double wishbone
Front Wheel Travel 185 mm
Suspension Rear Independent dual-arm
Rear Wheel Travel 215 mm
Brakes Front Dual hydraulic 190mm discs
Brakes Rear Single hydraulic 170mm disc
Tyres Size Front 25 x 8 - 12
Tyres Size Rear 25 x 10 - 12



Dimensions & Weight

Wheelbase 1294 mm
Ground Clearance 247 mm
Seat Height 922 mm
Kerb Weight 331 kg
Fuel Capacity 14.7 litres (Including 4.9 litres reserve)
Length 2185 mm
Width 1205 mm
Height 1237 mm
Towing Capacity 600 kg
Front Carrier Capacity 45 kg
Rear Carrier Capacity 85 kg
