Honda TRX420TM1


Price:
$17,129

GST. Included Shipping calculated at checkout

Apple Pay Google Pay Mastercard Shop Pay Visa

Description

Honda TRX420TM1

Simple, Dependable Farm Power

If you don't need 4WD but still want the pulling power and durability of Honda's proven 420 range, the Honda TRX420TM1 is a practical, no-nonsense farm ATV.

Powered by a 420cc fuel-injected Honda engine and matched with a 5-speed manual transmission with reverse, the TRX420TM1 is designed for everyday jobs around flatter farms and lifestyle properties.

With a tough solid rear axle, shaft drive, generous carrying capacity and 385kg towing capacity, it's a straightforward workhorse built to earn its keep.

Proven 420cc Honda Engine

At the heart of the TRX420TM1 is Honda's 420cc liquid-cooled OHV single-cylinder four-stroke engine.

Honda's Programmed Fuel Injection (PGM-FI) provides easy starting, responsive throttle performance and excellent fuel economy across changing conditions.

The engine is mounted longitudinally in the chassis, providing a direct path through the drivetrain and helping efficiently transfer power to the ground.

Reliable, economical and built for everyday use.

5-Speed Manual Transmission

The TRX420TM1 uses a traditional 5-speed manual transmission with reverse, giving the rider direct control over power delivery.

A low first gear makes it easy to travel slowly when following stock or carrying out jobs around the farm, while the geared transmission provides predictable power delivery and useful engine braking.

It's a simple, proven drivetrain without the complexity of an automatic transmission.

2WD Simplicity

Unlike the FM and FA models in the TRX420 range, the TRX420TM1 is two-wheel drive.

For flatter farms, lifestyle blocks and properties where 4WD isn't necessary, this keeps the ATV simple while still giving you the performance and pulling power of Honda's larger 420cc engine.

It also makes the TM1 the lightest of Honda's current TRX420 farm models.

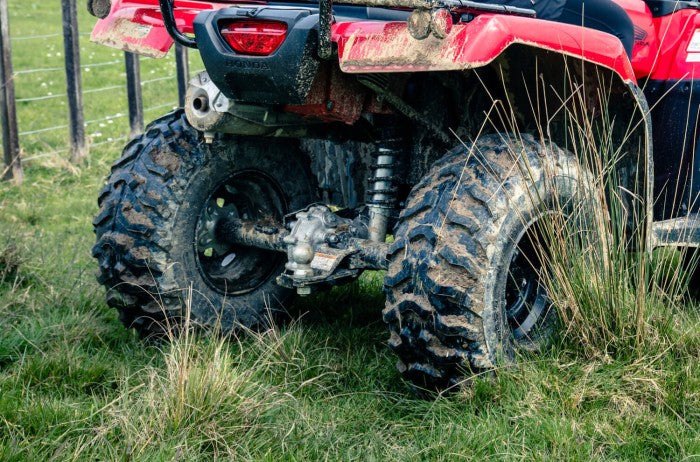

Tough Solid Rear Axle

The TRX420TM1 uses Honda's proven solid rear axle, designed for strength, durability and low maintenance.

Its fully enclosed design helps prevent mud, grass and debris from entering the running gear.

Rear suspension is handled by a swingarm and single shock, providing 170mm of wheel travel.

It's a simple setup designed to handle years of everyday farm work.

Independent Front Suspension

At the front, independent double-wishbone suspension provides 170mm of wheel travel.

This allows each front wheel to respond independently to uneven ground, helping provide a controlled and comfortable ride across paddocks and farm tracks.

385kg Towing Capacity

The TRX420TM1 may be the simplest 420 in the range, but it can still put in a serious day's work.

With a 385kg towing capacity, there's plenty of capability for moving trailers, equipment and supplies around the property.

Combined with the torquey 420cc engine and low first gear, it's a useful machine for much more than simply getting from A to B.

Heavy-Duty Carrying Capacity

Strong carry racks give you room for the equipment and supplies needed throughout the day.

Load up tools, fencing gear, feed or other farm essentials and take them with you.

Honda's Pro-Connect system also allows compatible accessories to be quickly attached and removed, making it easier to configure the ATV around the jobs you need it to do.

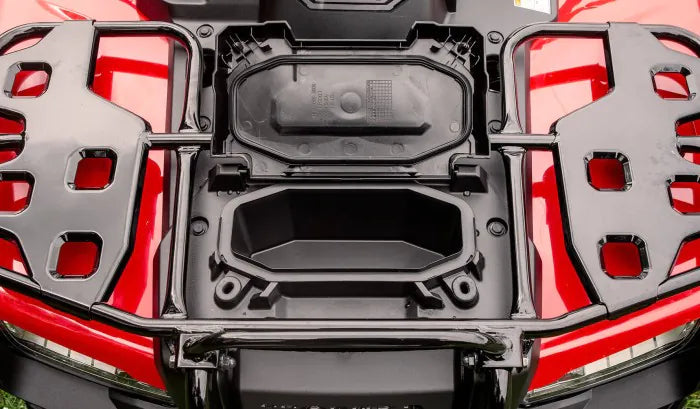

1.9L Weatherproof Utility Box

A handy 1.9-litre weatherproof utility box provides protected storage for smaller essentials.

It's an ideal place for your phone, keys, lunch or smaller tools that you want to keep close at hand and better protected from the elements.

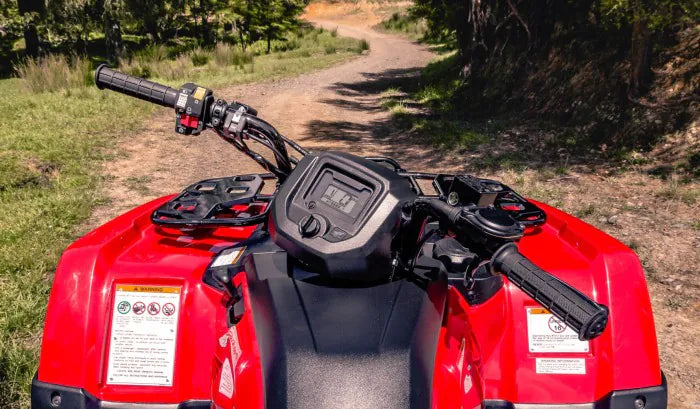

Easy-to-Read Digital Display

The large multi-function LCD display keeps important information clearly visible while you're riding.

Speed, fuel level, RPM, gear selection and other useful information are displayed clearly, giving you the essentials at a glance.

Built to Work

A strong double-cradle steel frame provides the foundation for the TRX420TM1.

It's designed to provide predictable handling and a smooth ride while maintaining the strength required for everyday farm use.

Combine that with Honda's 420cc engine, manual gearbox, shaft drive and solid rear axle and you've got an ATV designed around straightforward reliability.

Key Features

  • 420cc liquid-cooled OHV four-stroke engine

  • Honda PGM-FI electronic fuel injection

  • Longitudinally mounted engine

  • 5-speed manual transmission with reverse

  • 2WD

  • Manual steering

  • Shaft drive

  • Independent double-wishbone front suspension

  • Solid rear axle

  • 170mm front suspension travel

  • 170mm rear suspension travel

  • 385kg towing capacity

  • Heavy-duty carry racks

  • Honda Pro-Connect accessory compatibility

  • 1.9L weatherproof utility box

  • Multi-function LCD display

  • Double-cradle steel frame

  • Electric start with auxiliary recoil

Specifications

Engine: Longitudinally mounted liquid-cooled OHV single-cylinder four-stroke
Engine Capacity: 420cc
Cylinders: 1
Valves: 4
Bore × Stroke: 86.5mm × 71.5mm
Fuel System: Honda PGM-FI electronic fuel injection
Ignition: Full-transistorised with electronic advance

Transmission: Manual 5-speed with reverse
Starter: Electric with auxiliary recoil
Drive: 2WD
Steering: Manual

Front Suspension: Independent double-wishbone
Front Wheel Travel: 170mm

Rear Suspension: Solid axle swingarm with single shock
Rear Wheel Travel: 170mm

Front Brakes: Dual hydraulic discs
Rear Brake: Sealed mechanical drum

Front Tyres: 24 × 8-12
Rear Tyres: 24 × 10-11

Seat Height: 856mm
Ground Clearance: 183mm
Wheelbase: 1,268mm
Fuel Capacity: 14.7 litres
Kerb Weight: 264kg

Towing Capacity: 385kg
Carrier Capacity: 30kg

Honda TRX420TM1 – City Honda Manawatu

If your property doesn't require 4WD but you still want the power and durability of Honda's 420 range, the TRX420TM1 makes a lot of sense.

You get a proven 420cc fuel-injected engine, traditional 5-speed manual transmission, solid rear axle and 385kg towing capacity in a straightforward 2WD package.

For flat farms, lifestyle blocks and everyday property work, it's a simple Honda ATV that's built to get the job done.

Talk to the team at City Honda Manawatu about the Honda TRX420TM1, trade-ins, finance options and our on-farm servicing.
