Honda TRX420FA6

New

Price:
$21,729

GST. Included Shipping calculated at checkout

Apple Pay Google Pay Mastercard Shop Pay Visa

Description

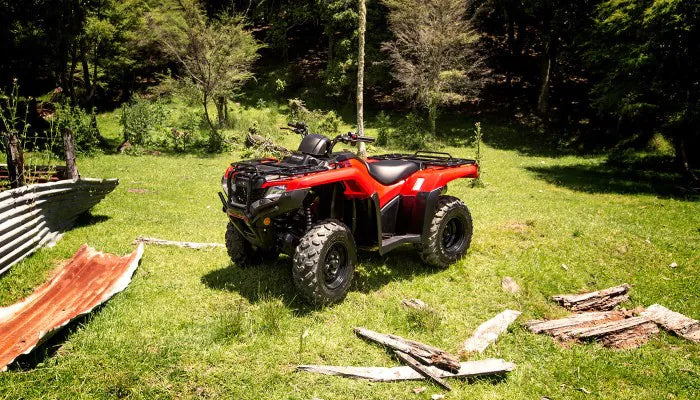

Honda TRX420FA6

Automatic. Comfortable. Built to Work.

When your ATV is a tool you rely on every day, it needs to be tough, easy to operate and ready for whatever the farm throws at it.

The Honda TRX420FA6 combines a reliable 418cc fuel-injected engine with Honda's automatic Dual Clutch Transmission (DCT), 4WD, Electronic Power Steering and Independent Rear Suspension.

Whether you're checking stock, carrying gear, navigating hills or spending hours getting around the farm, the TRX420FA6 is designed to make the job easier.

Reliable 418cc Honda Engine

At the heart of the TRX420FA6 is Honda's proven 418cc liquid-cooled four-stroke single-cylinder engine.

Programmed Fuel Injection (PGM-FI) provides easy starting, responsive power delivery and efficient operation across changing conditions.

The engine is mounted longitudinally in the chassis, allowing power to be transferred more directly through the driveline.

Simple, dependable and built for everyday farm use.

Automatic Dual Clutch Transmission

No drive belts here.

The TRX420FA6 uses Honda's 5-speed automatic Dual Clutch Transmission (DCT) with reverse.

Instead of relying on a conventional CVT drive belt, Honda DCT uses mechanical gears, combining the convenience of an automatic with the durability and direct drive of a geared transmission.

It also provides excellent engine braking – particularly useful when working across steep or challenging terrain.

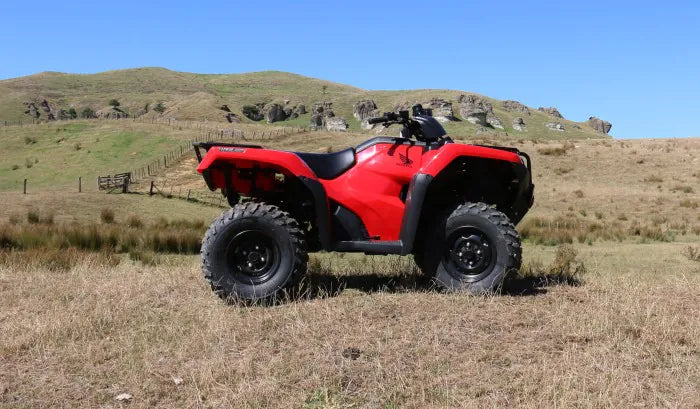

Honda 4WD

When the terrain gets difficult, Honda's 4WD system helps put the power where you need it.

Combined with the torquey 418cc engine and direct shaft drive, the TRX420FA6 is well suited to hills, mud, paddocks and changing farm conditions.

Front and rear driveshafts also mean there's no exposed drive chain requiring regular adjustment.

Independent Rear Suspension

One of the biggest reasons to choose the FA6 is its Independent Rear Suspension.

The rear independent dual-arm setup provides 215mm of travel, allowing each rear wheel to react independently as you cross uneven terrain.

Up front, independent double-wishbone suspension provides 185mm of travel.

The result is improved comfort and control – particularly valuable if you're spending a lot of time on the ATV or regularly travelling across rough country.

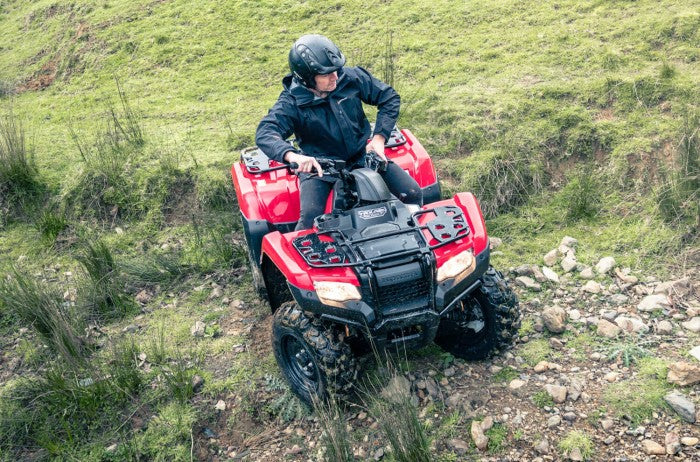

Electronic Power Steering

Honda's Electronic Power Steering (EPS) reduces steering effort at lower speeds while helping minimise kickback through the handlebars over rough terrain.

Whether you're manoeuvring around yards, navigating tight gateways or working across uneven ground, EPS helps reduce rider fatigue and makes the TRX420FA6 easier to control.

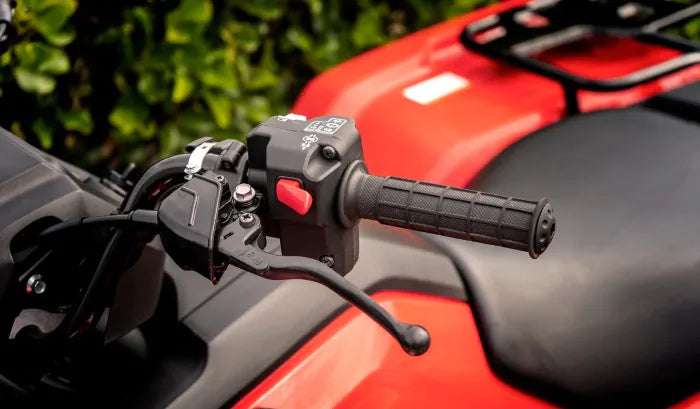

Easy Electric Reverse

Going backwards shouldn't be a hassle.

The TRX420FA6 features Honda's convenient electric reverse switch, making it easy to move between forward and reverse.

It's particularly useful for farm jobs that require repeated manoeuvring in tight spaces.

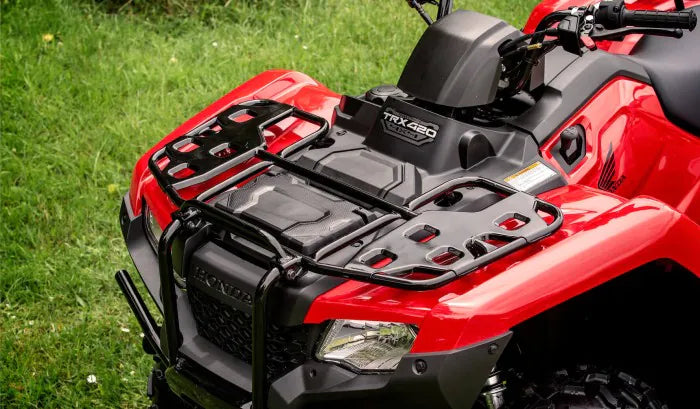

Heavy-Duty Carry Racks

Strong front and rear racks give you plenty of capacity for carrying the gear you need around the farm.

Front rack capacity: 30kg
Rear rack capacity: 60kg

From fencing gear and tools to feed and other everyday essentials, the TRX420FA6 is designed to help get the job done.

The racks are also compatible with Honda's Pro-Connect accessory system, making it easy to add purpose-built accessories.

Honda Pro-Connect

Honda's Pro-Connect system lets you quickly attach and remove compatible accessories using an integrated quick-connection latch system.

That means you can set your ATV up around the work you actually do – adding storage and accessories without needing complicated mounting systems.

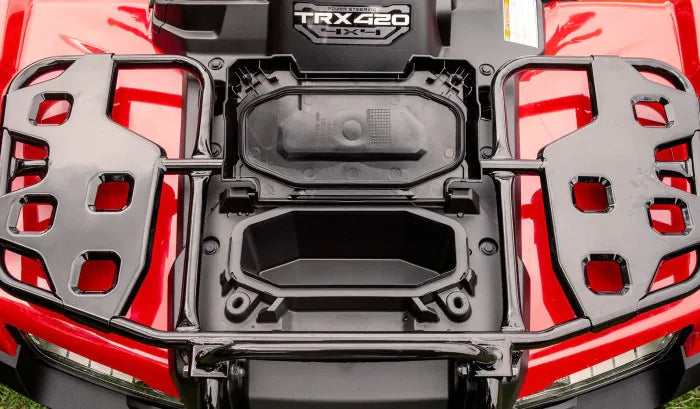

Weatherproof Utility Box

A handy 1.9-litre weatherproof utility box provides protected storage for smaller essentials.

Keep your phone, tools or other important items close at hand and better protected from the elements while you're working.

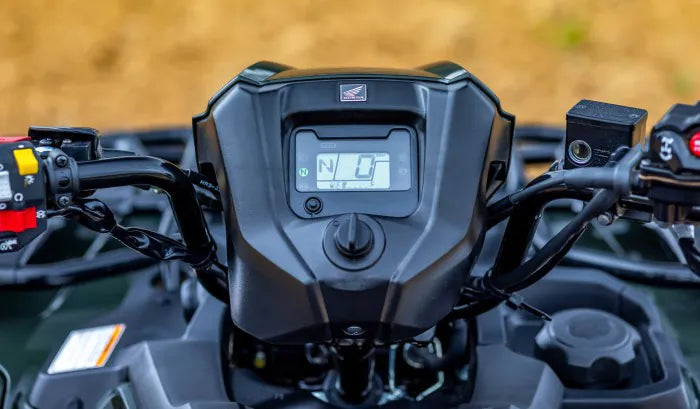

Easy-to-Read Digital Display

The large multi-function LCD display keeps important information clearly visible while you're riding.

Information includes speed, fuel level, engine RPM, gear selection and more, giving you the essentials at a glance.

Built to Handle Tough Terrain

The TRX420FA6 uses a strong double-cradle steel frame, designed to provide precise handling and a smooth ride without compromising the strength needed for farm work.

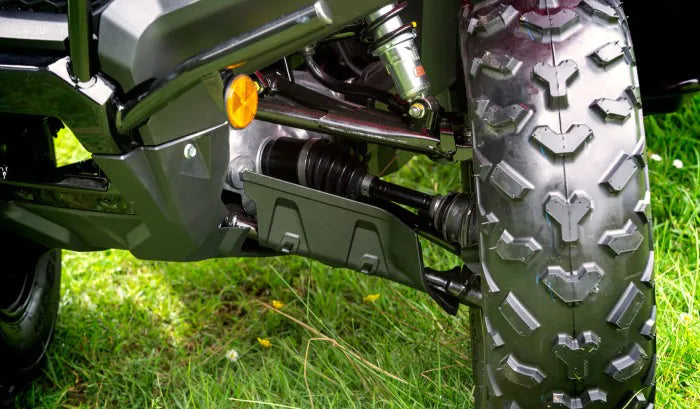

Full-length A-arm guards also provide additional protection for the lower suspension arms, driveshafts and CV joints when you're travelling through rough terrain.

With 243mm of ground clearance, the TRX420FA6 is ready to deal with ruts, uneven paddocks and challenging farm tracks.

Key Features

  • 418cc liquid-cooled four-stroke engine

  • Honda PGM-FI electronic fuel injection

  • Longitudinally mounted engine

  • 5-speed automatic Dual Clutch Transmission (DCT)

  • Reverse

  • Four-wheel drive

  • Direct front and rear driveshafts

  • Torque-sensitive locking front differential

  • Electronic Power Steering

  • Independent front suspension

  • Independent rear suspension

  • 185mm front suspension travel

  • 215mm rear suspension travel

  • Electric reverse switch

  • Heavy-duty front and rear carry racks

  • Honda Pro-Connect accessory compatibility

  • 1.9L weatherproof utility box

  • Multi-function LCD display

  • Full-length A-arm guards

  • 243mm ground clearance

  • Electric start

Specifications

Engine: 418cc liquid-cooled longitudinally mounted single-cylinder four-stroke
Cylinders: 1
Valves: 2
Bore × Stroke: 86.5mm × 71.5mm
Compression Ratio: 9.9:1
Fuel System: PGM-FI with 34mm throttle body

Transmission: 5-speed automatic Dual Clutch Transmission (DCT) with reverse
Clutch: Automatic
Starter: Electric with optional auxiliary recoil
Drive: Four-wheel drive
Final Drive: Direct front and rear driveshafts with torque-sensitive locking front differential

Front Suspension: Independent double-wishbone
Front Suspension Travel: 185mm

Rear Suspension: Independent dual-arm
Rear Suspension Travel: 215mm

Steering: Electronic Power Steering

Front Brakes: Dual 193mm discs
Rear Brake: 170mm disc

Front Tyres: 24 × 8-12
Rear Tyres: 24 × 10-12

Ground Clearance: 243mm
Seat Height: 899mm
Wheelbase: 1,295mm
Fuel Capacity: 14.7 litres
Kerb Weight: 312kg

Front Rack Capacity: 30kg
Rear Rack Capacity: 60kg

Honda TRX420FA6 – City Honda Manawatu

If you're looking for a dependable farm ATV that's comfortable, easy to operate and ready for tough terrain, the Honda TRX420FA6 is an excellent all-round package.

The automatic DCT takes the hassle out of gear changes without relying on a drive belt, while Electronic Power Steering, 4WD and Independent Rear Suspension make long days and rough terrain easier to handle.

Add Honda's proven 418cc engine, shaft drive and heavy-duty carrying capacity and you've got an ATV that's ready to earn its keep.

Talk to the team at City Honda Manawatu about the Honda TRX420FA6, trade-ins, finance options and our on-farm servicing.
