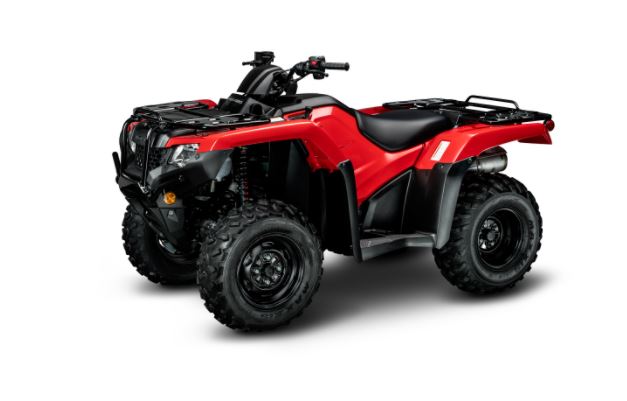

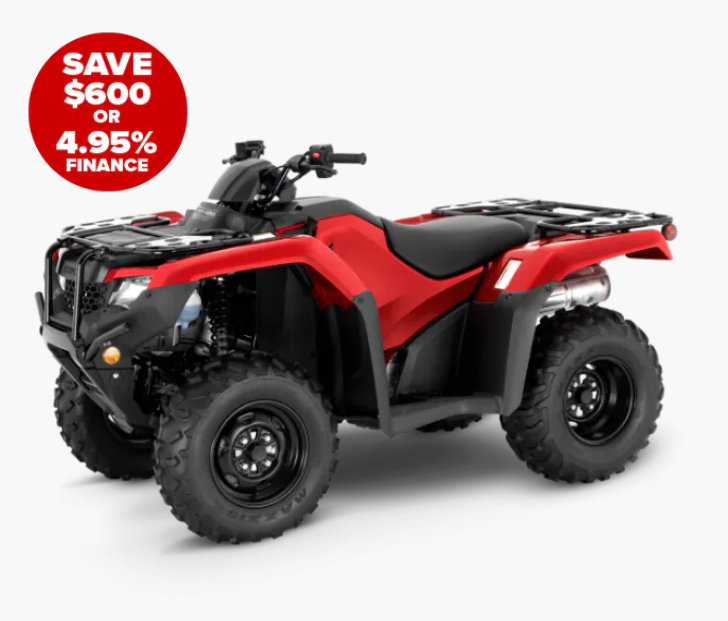

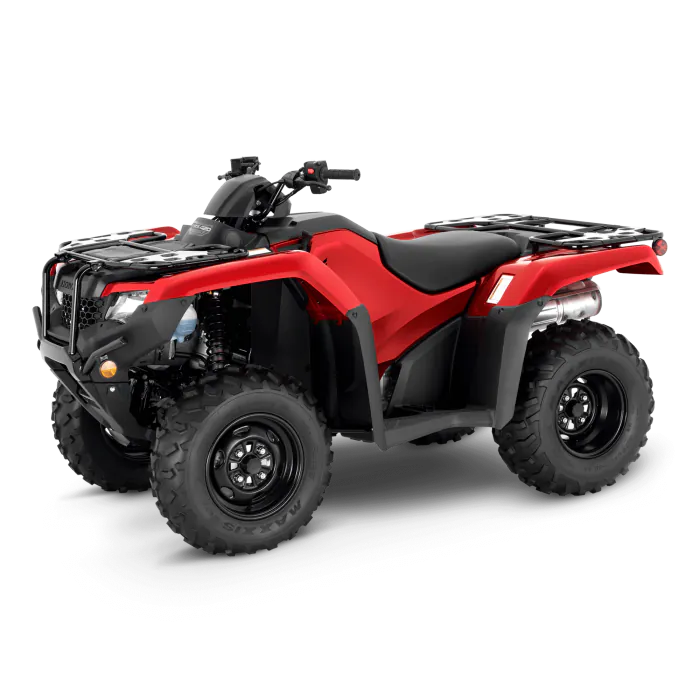

Honda TRX420FA2

Automatic. Tough. Built for the Farm.

The Honda TRX420FA2 combines the convenience of an automatic with the strength and durability farmers expect from a Honda ATV.

Powered by a reliable 420cc fuel-injected engine, the TRX420FA2 features Honda's 5-speed automatic Dual Clutch Transmission (DCT), selectable 2WD/4WD, Electronic Power Steering and a tough solid rear axle.

There's no drive belt to worry about. Instead, Honda's DCT uses mechanical gears to provide smooth automatic shifting, excellent engine braking and the durability needed for everyday farm work.

Whether you're checking stock, towing around the farm or carrying gear across challenging terrain, the TRX420FA2 is built to get on with the job.

Reliable 420cc Honda Engine

At the heart of the TRX420FA2 is Honda's proven 420cc liquid-cooled OHV single-cylinder four-stroke engine.

Honda's Programmed Fuel Injection (PGM-FI) provides easy starting, responsive power delivery and efficient operation across changing conditions and altitudes.

The engine is mounted longitudinally in the chassis, providing a more direct path from the engine through the driveline to the wheels.

Simple, efficient and designed for everyday farm use.

Automatic Dual Clutch Transmission

Forget drive belts.

The TRX420FA2 uses Honda's proven 5-speed automatic Dual Clutch Transmission (DCT) with reverse.

Unlike a conventional belt-driven automatic ATV, Honda's DCT uses durable mechanical gears. This combines the convenience of an automatic with the strength and direct drive of a traditional geared transmission.

The system also provides excellent engine braking – particularly useful when working across steep and challenging terrain.

Automatic or Manual Shifting

Want the convenience of an automatic but still like having control over the gears?

You've got both.

The TRX420FA2 can shift automatically, or you can manually select gears using the handlebar-mounted controls.

An override function also allows you to manually change gear while operating in automatic mode, giving you extra control exactly when you need it.

Easy Electronic Reverse

Honda has made getting into reverse simple.

A fully electronic reverse system allows you to quickly select reverse using a convenient handlebar control.

It's especially useful when you're regularly manoeuvring around yards, sheds, gateways or other tight areas around the farm.

Selectable 2WD & 4WD

Honda's TraxLok system allows you to select between 2WD and 4WD depending on the conditions.

Use 2WD when conditions are good, then engage 4WD when you need additional traction across hills, mud or slippery paddocks.

Combined with Honda's direct shaft drive, the system provides a tough and dependable drivetrain for changing farm conditions.

Electronic Power Steering

Honda's Electronic Power Steering (EPS) reduces steering effort and helps minimise kickback through the handlebars when you're travelling across rough terrain.

It makes manoeuvring around the farm easier and helps reduce rider fatigue – particularly when you're spending hours on the ATV.

Tough Solid Rear Axle

The solid rear axle is one of the key features of the TRX420FA2.

Designed for strength, durability and low maintenance, the fully enclosed rear axle helps prevent mud, grass and debris from getting into the running gear.

Rear suspension is handled by a swingarm and single shock with 170mm of travel, providing a controlled ride while keeping the rear drivetrain simple and tough.

For farmers prioritising durability and straightforward maintenance, it's a proven setup.

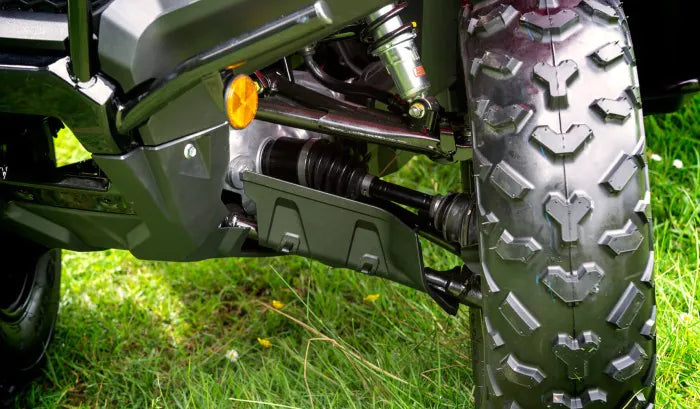

Independent Front Suspension

Up front, independent double-wishbone suspension provides 170mm of wheel travel.

This helps the front wheels follow uneven terrain independently, improving steering control and helping absorb bumps, ruts and rough farm tracks.

Full-length A-arm guards provide additional protection for the driveshafts and outboard CV joints.

385kg Towing Capacity

Need to tow around the farm?

The TRX420FA2 has a 385kg towing capacity, giving you useful capability for a wide range of everyday farm jobs.

Combined with the torquey 420cc engine, geared DCT transmission and selectable 4WD, it's ready to do more than simply get you from one paddock to another.

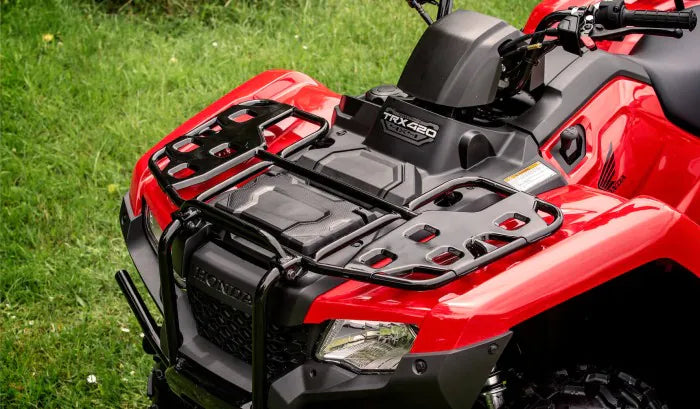

Heavy-Duty Carry Racks

Strong front and rear carry racks provide plenty of room for tools, gear and other farm essentials.

The racks are designed to accept Honda's Pro-Connect accessory system, making it easy to add compatible storage and accessories.

Whether you're carrying fencing equipment, tools, feed or the everyday gear needed around the farm, the TRX420FA2 is designed to work with you.

Honda Pro-Connect

Honda's Pro-Connect system makes adding compatible ATV accessories simple.

Purpose-built accessories use a quick-connection latch system, allowing you to configure your ATV around the work you need it to do.

Attach what you need and get on with the job.

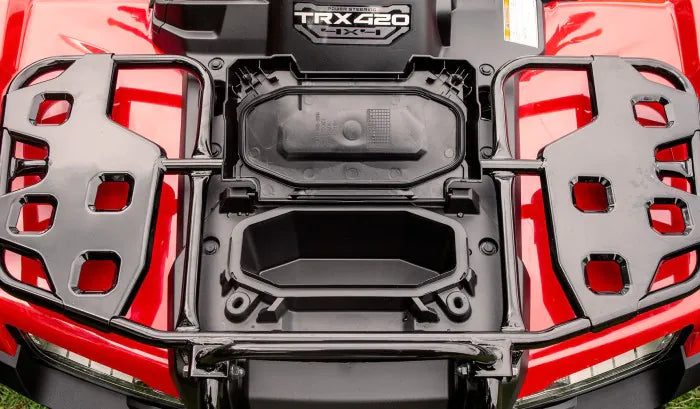

Weatherproof Utility Box

A handy 1.9-litre weatherproof utility box provides protected storage for smaller essentials.

It's a convenient place to keep your phone, tools, lunch or other items better protected from the weather while you're out working.

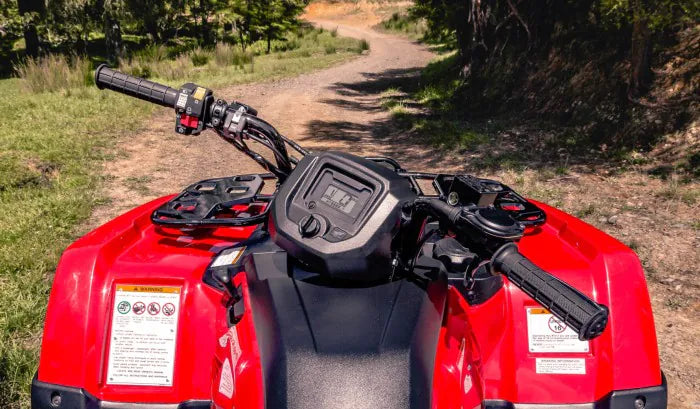

Easy-to-Read Digital Display

A large multi-function LCD display keeps important information clearly visible.

The display includes speed, fuel level, RPM, gear selection and other useful information, giving you the essentials at a glance without unnecessary complication.

Built for Everyday Farm Work

The TRX420FA2 uses a strong double-cradle steel frame, designed to provide precise handling and a controlled ride without sacrificing the durability required for farm use.

Combine that with shaft drive, a solid rear axle, selectable 4WD and Honda's geared DCT transmission and you've got an ATV designed around reliability and getting work done.

Key Features

• 420cc liquid-cooled four-stroke engine

• Honda PGM-FI electronic fuel injection

• Longitudinally mounted engine

• 5-speed automatic Dual Clutch Transmission (DCT)

• Automatic and manual shifting

• Electronic reverse

• Honda TraxLok selectable 2WD/4WD

• Direct front and rear driveshafts

• Torque-sensing front differential

• Electronic Power Steering

• Independent double-wishbone front suspension

• Solid rear axle

• 170mm front suspension travel

• 170mm rear suspension travel

• 385kg towing capacity

• Heavy-duty carry racks

• Honda Pro-Connect accessory compatibility

• 1.9L weatherproof utility box

• Multi-function LCD display

• Full-length A-arm guards

• Electric start with auxiliary recoil

Specifications

Engine: 420cc liquid-cooled OHV single-cylinder four-stroke
Cylinders: 1
Bore × Stroke: 86.5mm × 71.5mm
Fuel System: PGM-FI with 34mm throttle body
Ignition: Full transistorised with electronic advance

Transmission: Dual Clutch Automatic, 5-speed with reverse
Shift Modes: Automatic / Manual override
Starter: Electric with auxiliary recoil
Drive: Selectable 2WD / 4WD
Final Drive: Direct front and rear driveshafts with torque-sensing front differential

Front Suspension: Independent double-wishbone
Front Wheel Travel: 170mm

Rear Suspension: Solid axle swingarm with single shock
Rear Wheel Travel: 170mm

Steering: Electronic Power Steering

Front Brakes: Dual hydraulic 190mm discs
Rear Brake: Single sealed 160mm mechanical drum

Front Tyres: 24 × 8-12
Rear Tyres: 24 × 10-11

Seat Height: 854mm
Ground Clearance: 181mm
Wheelbase: 1,269mm
Fuel Capacity: 14.7 litres
Kerb Weight: 293kg

Towing Capacity: 385kg
Carrier Capacity: 30kg

Honda TRX420FA2 – City Honda Manawatu

If you want the convenience of an automatic ATV without relying on a belt-driven transmission, the Honda TRX420FA2 is built for the job.

Honda's 5-speed DCT uses tough mechanical gears to provide smooth automatic shifting, strong engine braking and the ability to manually select gears when required.

Combine that with Electronic Power Steering, selectable 2WD/4WD, a durable solid rear axle and 385kg towing capacity, and you've got a practical farm ATV designed to work day after day.

Talk to the team at City Honda Manawatu about the Honda TRX420FA2, trade-ins, finance options and our on-farm servicing.
