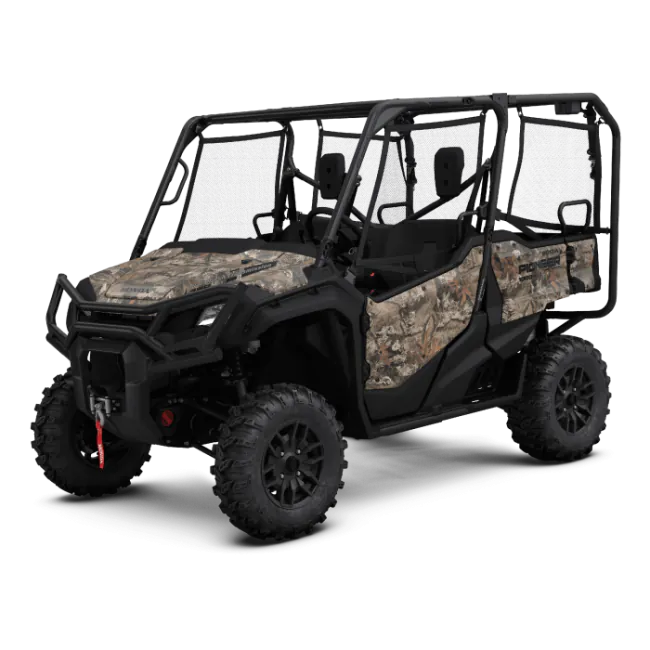

Honda Pioneer 1000-5P Forest

New

Price:
$45,994

GST. Included Shipping calculated at checkout

Apple Pay Google Pay Mastercard Shop Pay Visa

Description

Honda Pioneer 1000-5P Forest Edition features a range of extras including Warn VRX winch, i-4WD and more.

The Pioneer 1000 takes everything we have learnt from our ATVs and side-by-sides and added to them. Offering more power from their Honda Unicam engines, a new instrument panel, new, larger cup holders, upgraded tyres and wheels, new Electric Power Steering, new graphics and front-grille design, and much, much more.

The Forest edition comes with camo graphics, alloy wheels, Warn winch, larger front bumper and more.

Our Pioneer 1000-5 models include Honda QuickFlip® seating in the bed, letting you instantly switch from a fold-flat bed configuration to comfortable passenger seating.

From the 450kg hauling to the 1100kg+ towing capacity, it is designed to take what you need to where you need it. Choose from 3, 4, or 5 seats depending on what your situation requires. Fully-independent front and rear suspension with some of the longest travel of any multi-purpose side-by-side. And open or locked front and rear differentials that prevent you from unnecessarily tearing up delicate surfaces.

And let’s remember: this is a Honda, a name that’s long stood for quality and reliability. So you get class-leading power, performance, and features, purpose-built by the best in the business.

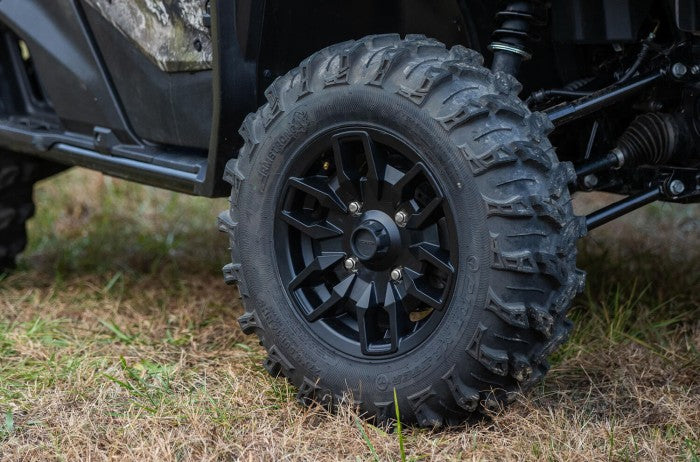

Forest Edition Features The Forest Edition comes with a range of extras including i-4WD for smarter traction in slippery conditions, a Warn VRX 45 winch, a rear bed light and interior light, black aluminium wheels, and oversized front bumper and TreuTimber Atera Camo graphics.

A Breath of Fresh Air To get the most out of your engine, you need the best air going into it. That’s why we positioned the air intake up high under the hood. It helps ensure a clean air supply, even at deeper fording depths, and with a new viscous air filter element, you get increased performance and longer service intervals.

Warn VRX 45 Winch This is a huge upgrade and standard equipment on our Pioneer 1000 Trail. The winch is installed at the factory, and is built right into the Pioneer’s chassis, not added on as an accessory. With a 2000+ kg capacity and spooled with steel cable, you'll be ready to pull your buddy out when he gets stuck!

Quickflip Seating Versatility is the defining feature of the Pioneer 1000-5P, and nothing illustrates that better than our industry-exclusive QuickFlip® seating system. Switch between 3-person mode with full cargo and tilt bed functionality, to 4-person mode, to 5. Seats lay flat in the bed, and pop up in an instant whenever you need them.

1100kg+ Towing Capacity The Pioneer 1000 is capable of towing 1,134 kilos. So instead of hopping on the tractor or taking out the truck, you can stay right in your side-by-side and tackle those bigger jobs with relative ease.

Huge power in the mid and top end range with a unicam cylinder head design found in our motocross bikes delivering the kind of horsepower and torque you'd expect from a flagship model

Features:

  • Updated Dashboard
  • Easy to read multi-function Dash
  • Rubber Mounted Exhuast to insulate the cabin against excessive vibrations
  • High/Low Sub-Transmission
  • Fully Automatic 6 Speed DCT Transmission
  • Tilt/Dump Bed
  • 2WD/4WD, Diff Lock, Turf Mode

Finance & Insurance

We are proud to be partnered with trusted finance and insurance partners to get you sorted with peace of mind, for both in-store and online purchases. See our full range of finance and insurance here.

Specifications:



Engine

Engine Type Longitudinally mounted liquid-cooled OHC Unicam parallel-twin four-stroke
Engine Displacement 999 cc
Bore and Stroke 92.0mm x 75.15mm
Compression Ratio 10:1
Ignition Full-transistorized type with electronic advance
Fuel System Programmed fuel injection (PGM-FI) - 44mm throttle body
Cylinders 2
Valves 8

Transmission

Starter Electric
Gearbox Steel gears
Final Drive Direct front and rear driveshafts
Transmission Type 6-Speed Automatic Dual Clutch Transmission (DCT)
Drive Modes TraxLok 2WD/4WD, Diff-lock, Turf Mode & High/Low Sub Transmission

Dimensions & Height

Wheelbase 2037 mm
Ground Clearance 312 mm
Seat Height 854 mm
Seating Capacity 5
Kerb Weight 814 kg (Includes all standard equipment, required fluids and full tank of fuel.)
Fuel Capacity 29.9 litres (Including 6.4 litres reserve)
Length 3028 mm
Width 1600 mm
Height 1941 mm
Towing Capacity 1134 kg
Minimum Turning Radius 4207 m
Rear Carrier Capacity 454 kg (With hydraulic assist lever (accessible from cab or outside))


Wheels, Suspension & Brakes

Suspension Front Independent double-wishbone
Front Wheel Travel 269 mm
Suspension Rear Independent double-wishbone
Rear Wheel Travel 254 mm
Brakes Front Dual hydraulic 210mm discs
Brakes Rear Dual hydraulic 210mm discs
Tyres Size Front 27 x 9 - 14
Tyres Size Rear 27 x 11 - 14
Steering Type Electric power steering with return to centre
Adjustable Steering Tilting steering wheel
